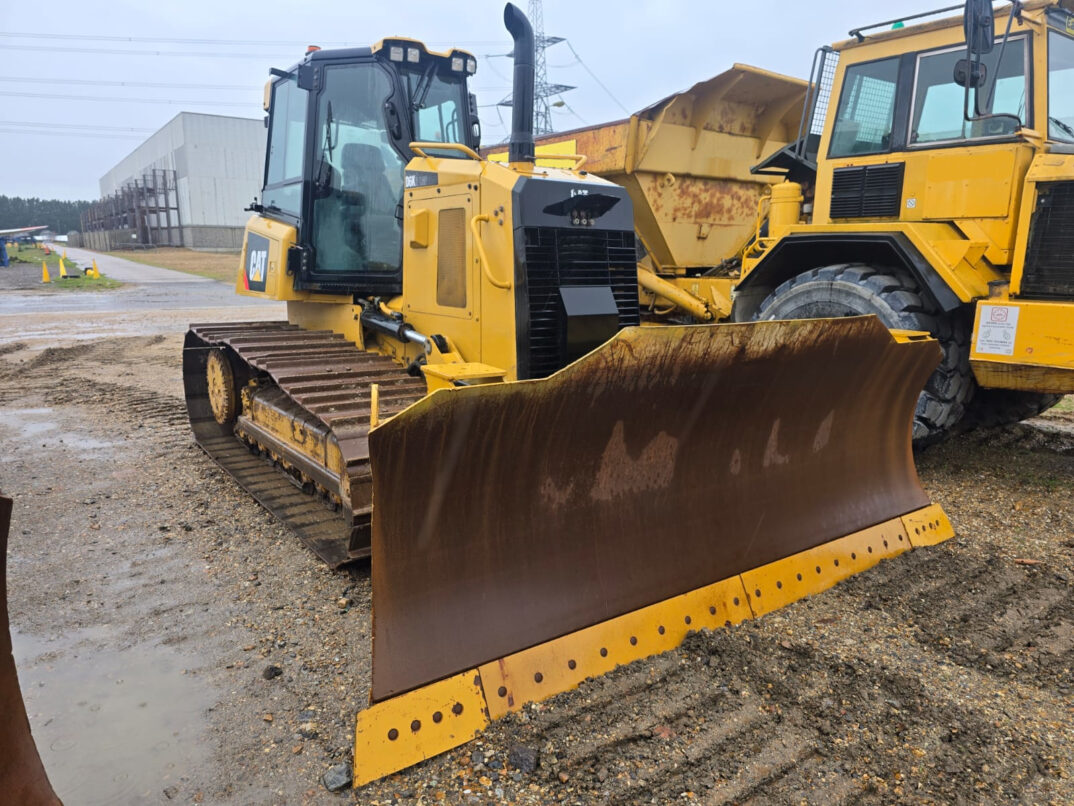

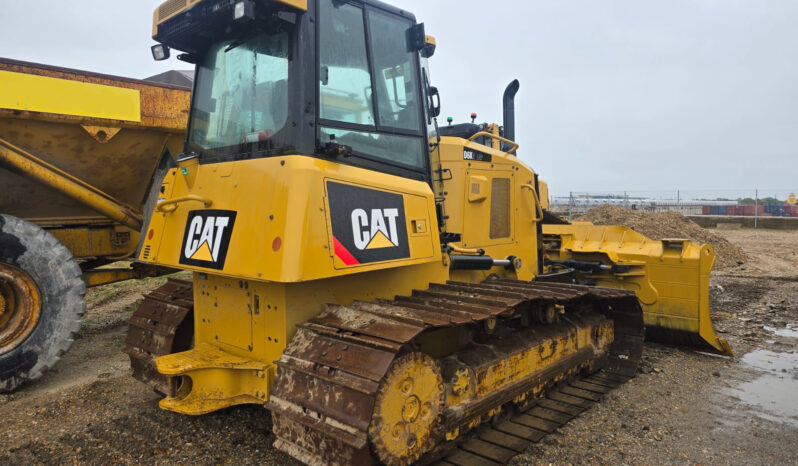

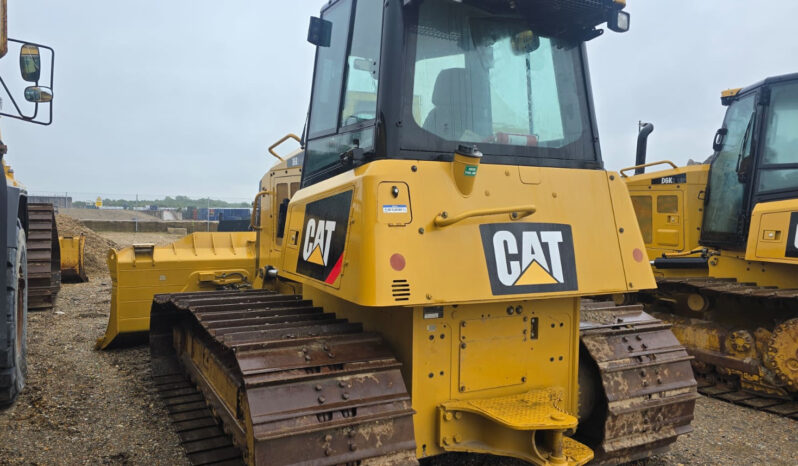

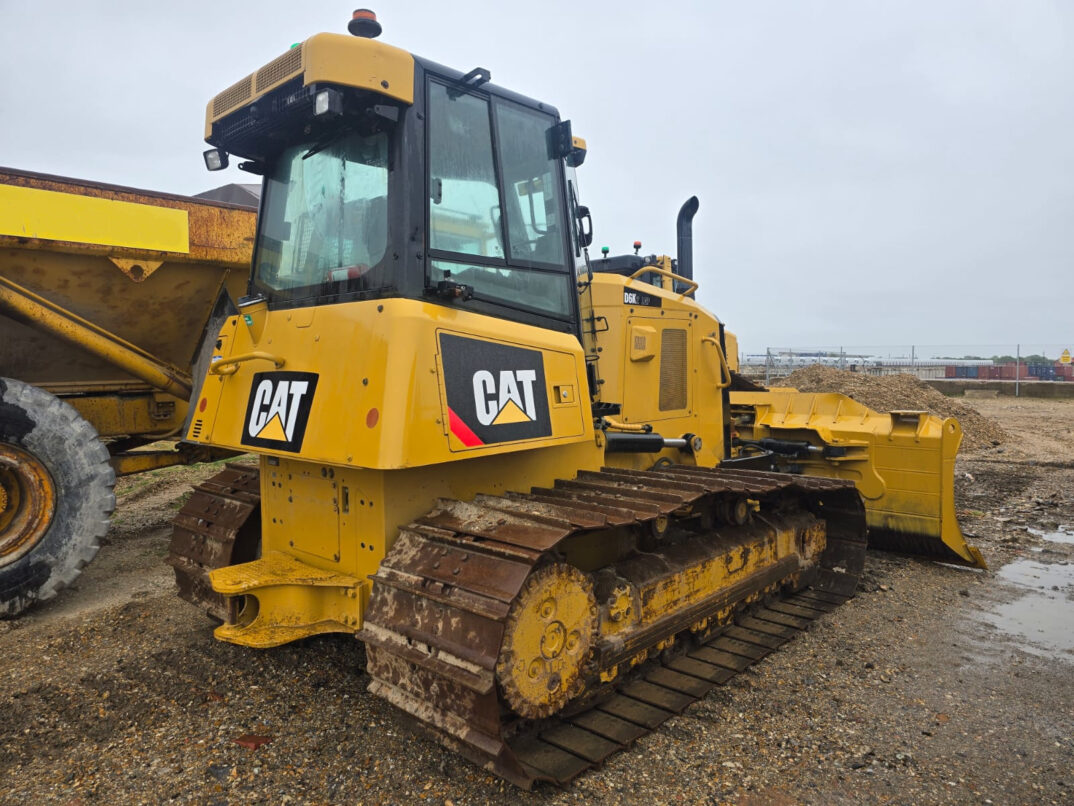

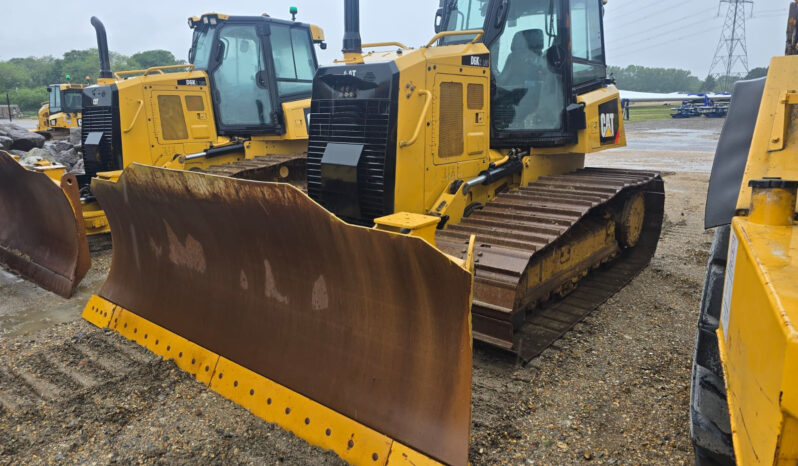

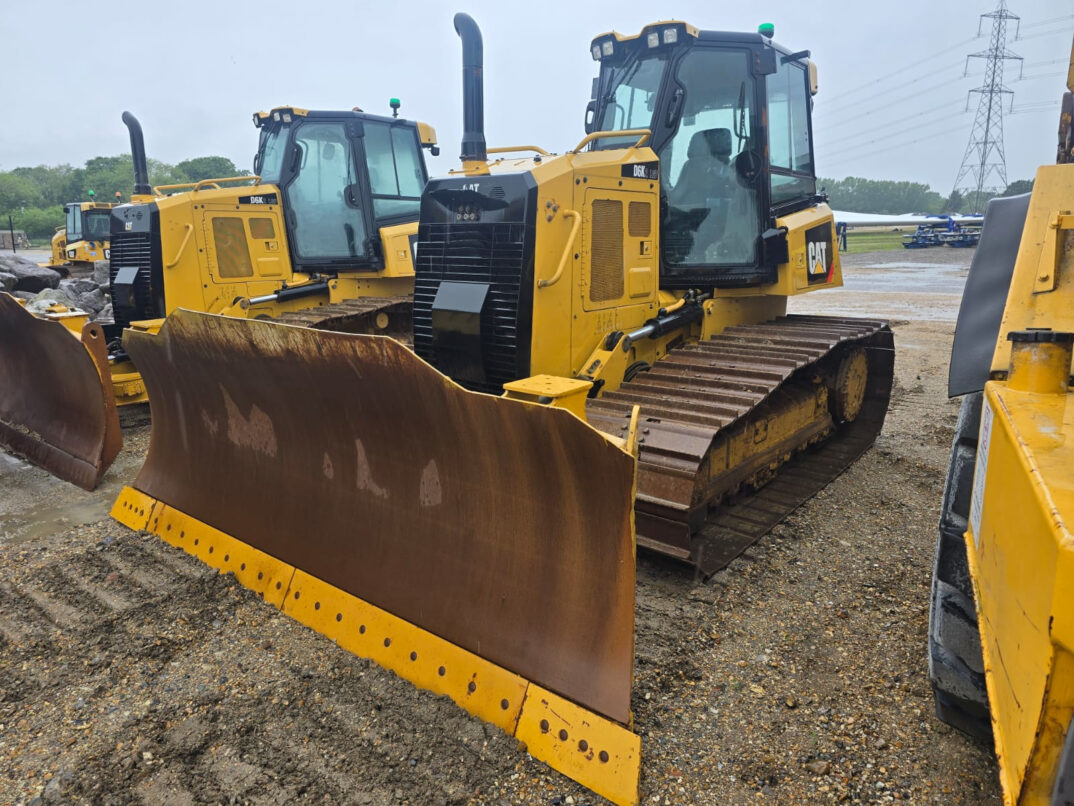

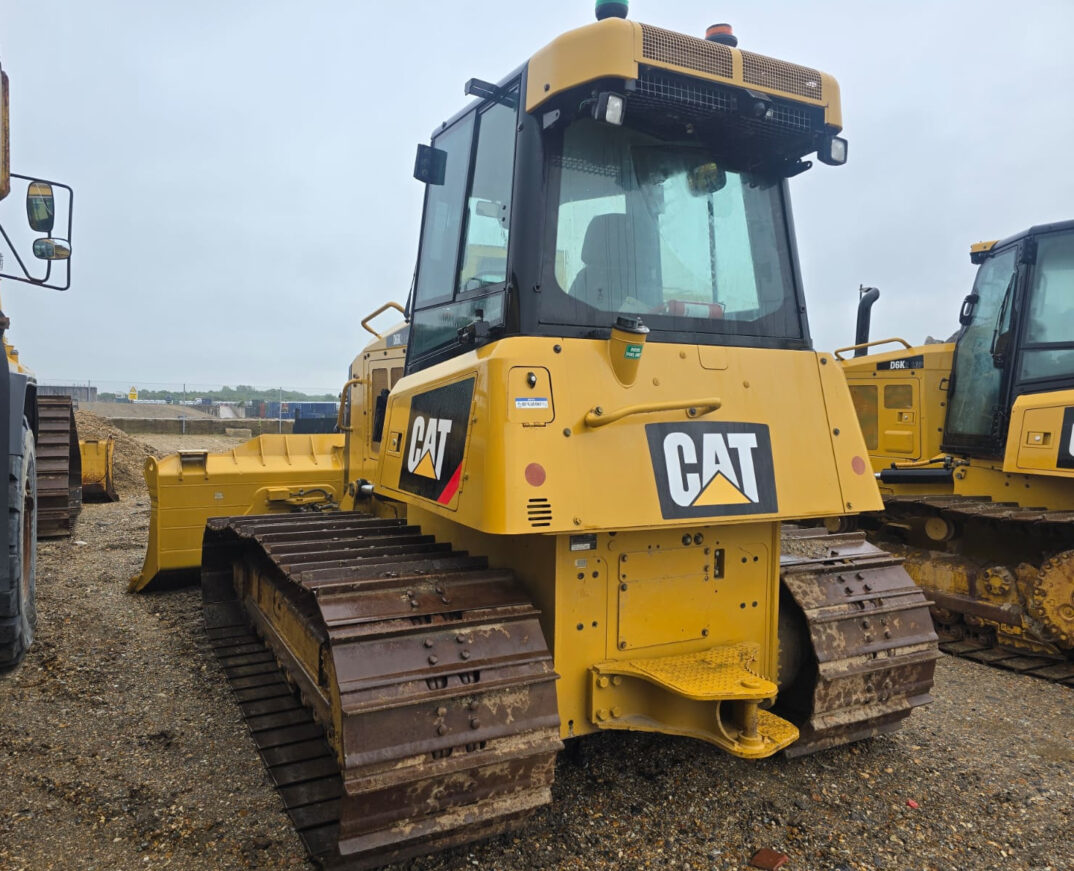

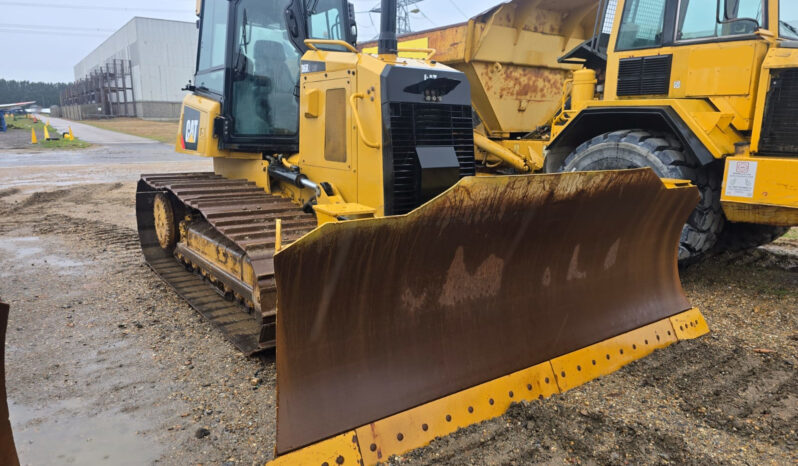

2018 CAT D6K2 LGP for Sale in Southampton

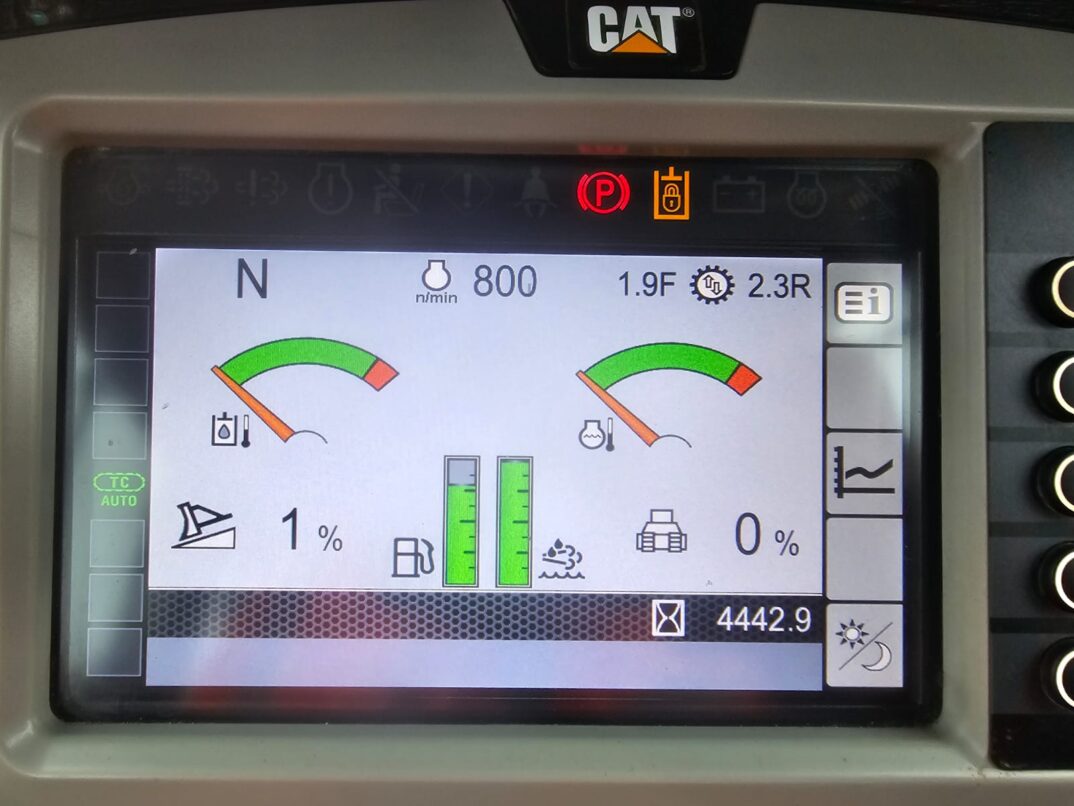

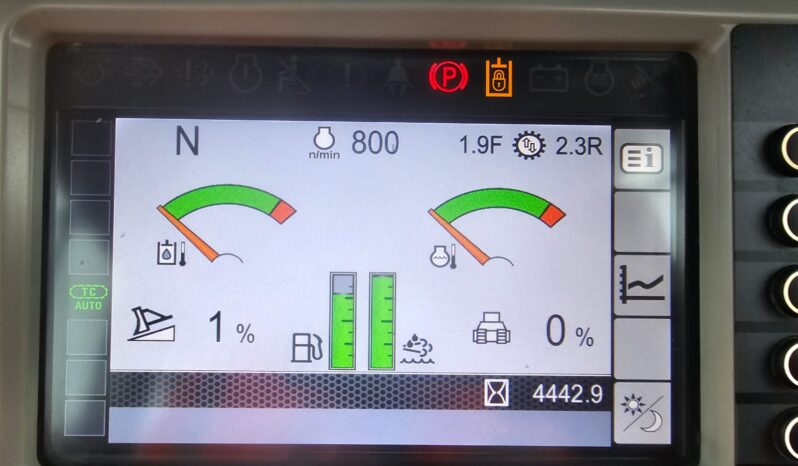

CAT D6K2 LGP Weight: 13,948 KGS Hours: 4497 HP: 158
A/C, Rear View Camera, Hydrostatic Drive, PAT Blade, 76 cm Single Grouser Track Shoes, Drawbar
ENGINE
Blow by- Minimal to none- - - -
Air cleaners- Good- - - -
Any smoke- Minimal to none- - - -
Oil or fuel leaks- none visible- - - -
General running condition- Runs well- - - -
TRANSMISSION
Gear change- HST changes well- - - -
Steering- Responsive- - - -
Oil leaks- None visible- - - -
is the transmission noisy?- No- - - -
Controls- Good, responsive controls- - - -
General running condition- Moves and steers well- - - - - - - UNDERCARRIAGE
Shoe width- 758mm- - - -
Shoe height- 45mm, 80%- - - -
Shoes - any wear in trailing edge- Minimal- - - -
Rail height- 103mm, 50%- - - -
Average diameter of pins and bushings- 55mm, 50%- - - -
Sprockets- 87mm gape, 9mm tips, 45%- - - -
Left side front idler- 30%- - - -
Right side front idler- 30%- - - - - - - TOP ROLLERS
Left side 1st roller- 155mm & 154mm, 50%- - - -
Left side 2nd roller- 156mm & 154mm, 50%- - - -
Right side 1st roller- 153mm & 155mm, 50%- - - -
Right side 2nd roller- 155mm & 156mm, 50%- - - - - - - BOTTOM ROLLERS
Roller 1- Visual only, 50%- - - -
Roller 2- 170mm & 169mm, 50%- - - -
Roller 3- 167mm & 167mm, 50%- - - -
Roller 4- Visual only, 50%- - - -
Roller 5- 168mm & 168mm, 50%- - - -
Roller 6- 167mm & 168mm, 50%- - - -
Roller 7- 170mm & 168mm, 50%- - - -
Roller 8- Visual only, 50%- - - - - - - CAB
Cab mounts any wear- Minimal- - - -
Any wiring for laser system- Yes- - - -
Back up alarm- Loud and clear- - - -
Battery isolator switch- Manual fitted- - - -
Lights- All working- - - -
Wipers- All working- - - -
Heater- Good heat- - - -
A/C- Nice and cold- - - -
Seat condition- Good condition- - - -
Cladding condition- Good condition- - - -
Floor mat condition- no wear or tears- - - -
Seat belt- Working, undamaged- - - -
Mirrors- Rear view only, undamaged- - - -
Horn- Loud and clear- - - -
Cab glass condition- Minor scuffs- - - -
Cab glass - any cracks- No- - - -
Steps and grab handles secure- All fitted and undamaged- - - - - - - BLADE
Blade type- PAT- - Blade width- 3615mm- - Blade height- 1270mm- - Main lift rams wear- L/H: 3mm, 2mm. R/H: 2mm, 2mm- - Pitch rams wear- L/H: 1-2mm, 5mm. R/H: 2mm, 4mm- - Link ram wear- L/H: 3mm, R/H: 3mm- - Tilt ram wear- L/H: 3-4mm, R/H: 2-3mm- - Ball joint wear- 5-7mm- - C frame wear- L/H: 5mm, R/H: 4mm- - Equaliser bar wear- L/H: 3-4mm, R/H: 3mm, Mid: 3mm- - Face / Moldboard- Good shape, good thickness- - - -
Spill rack condition- Few minor dents- - - -
General blade condition- Good- - - - - - - PAINT & DECALS
Paint condition- Fair, slightly faded- - - -
Any rust patches- Minimal- - - -
Condition of decals- To be replaced- - - -
DIMENSIONS- Length
Width
Height- Measurements with blade straight- 4900mm
3615mm
3100mm- Measurements with blade turned- 5700mm
3200mm
3100mm- Measurement from outside to outside of tracks-
2765mm- - Measurements with blade straight- Length: 4900mm
Width: 3615mm
Height: 3100mm- Measurements with blade turned- Length: 5700mm
Width: 3200mm
Height: 3100mm- Measurement from outside to outside of tracks- Length:
Width: 2765mm
Height:
