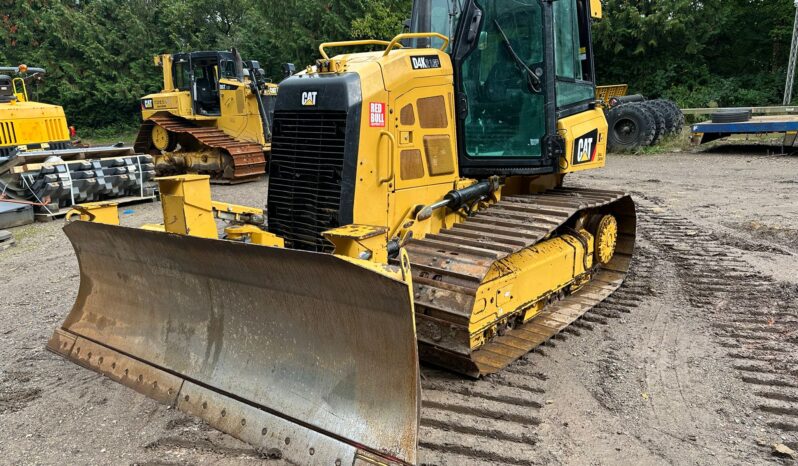

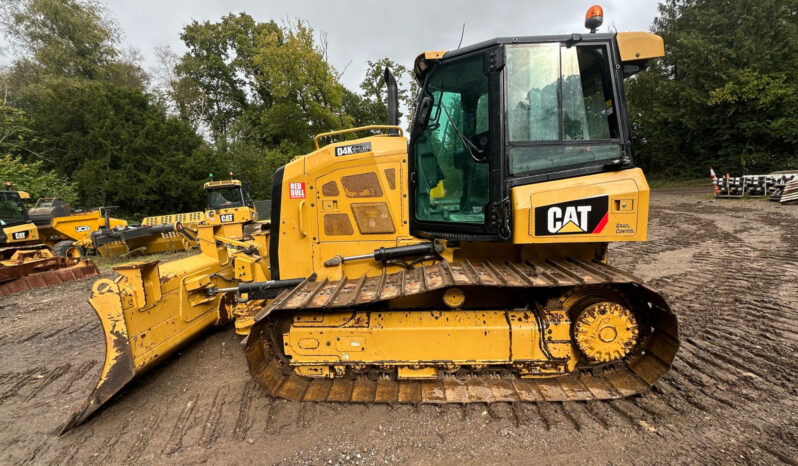

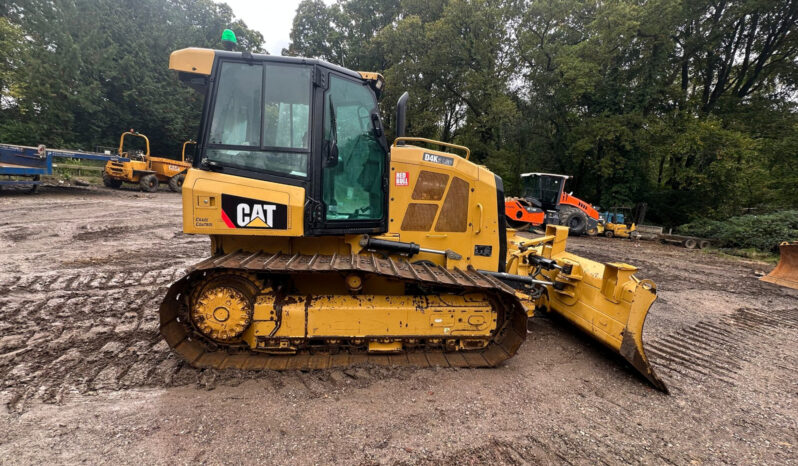

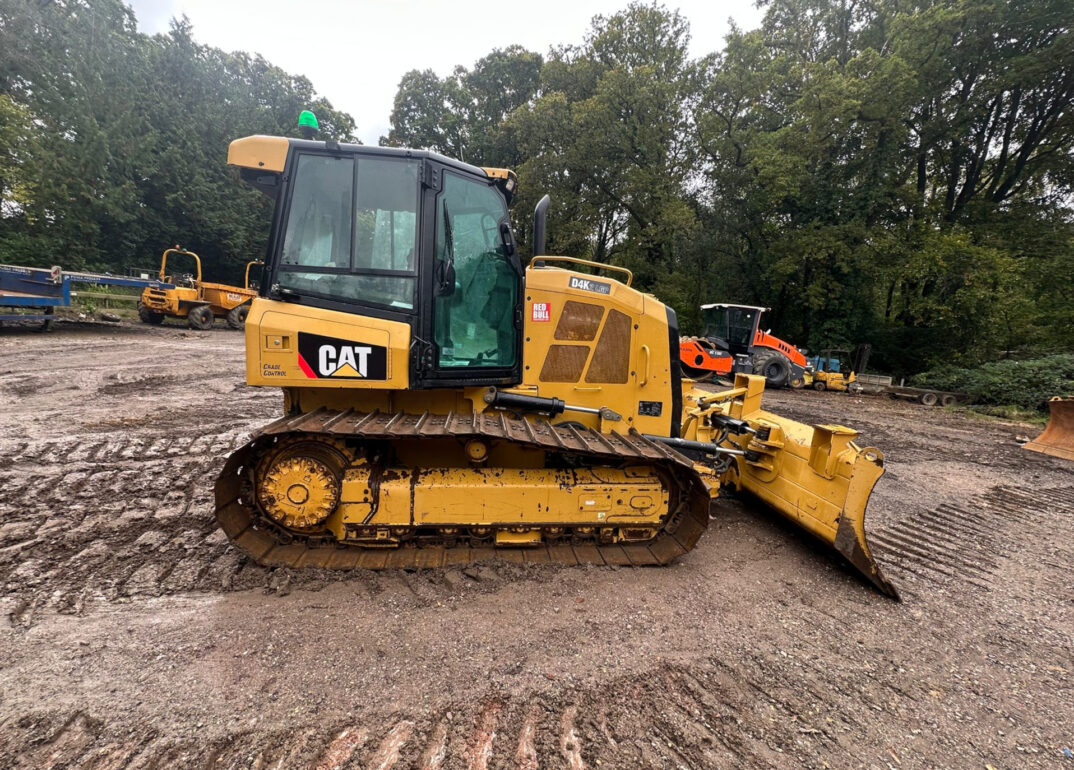

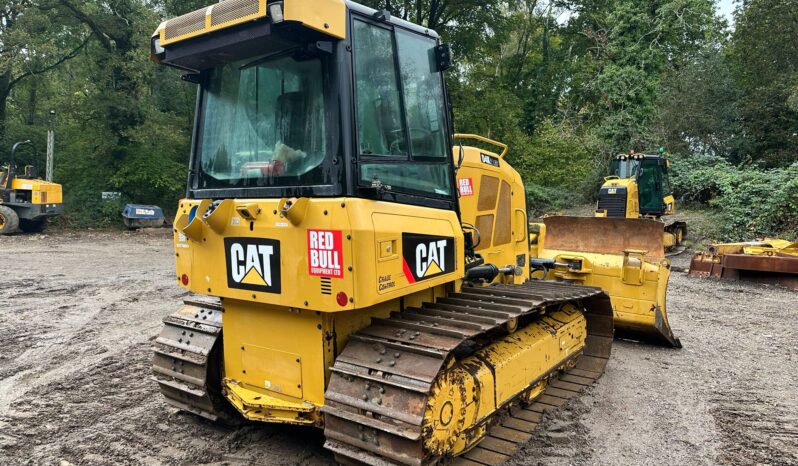

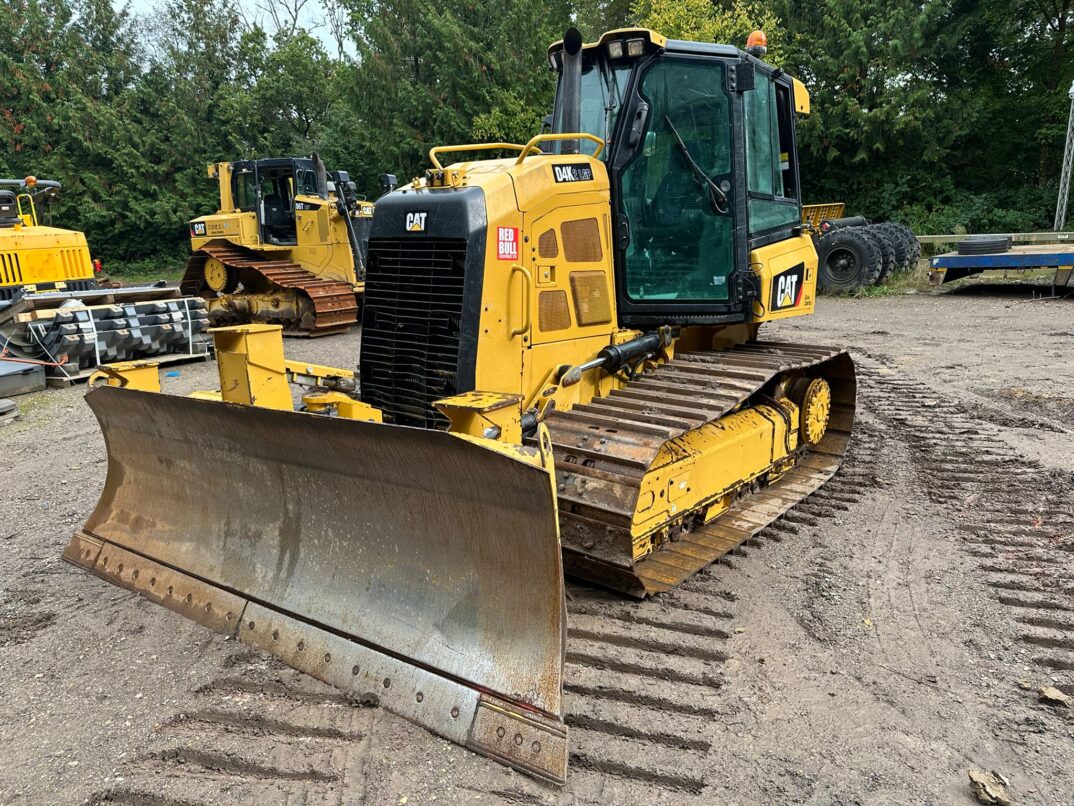

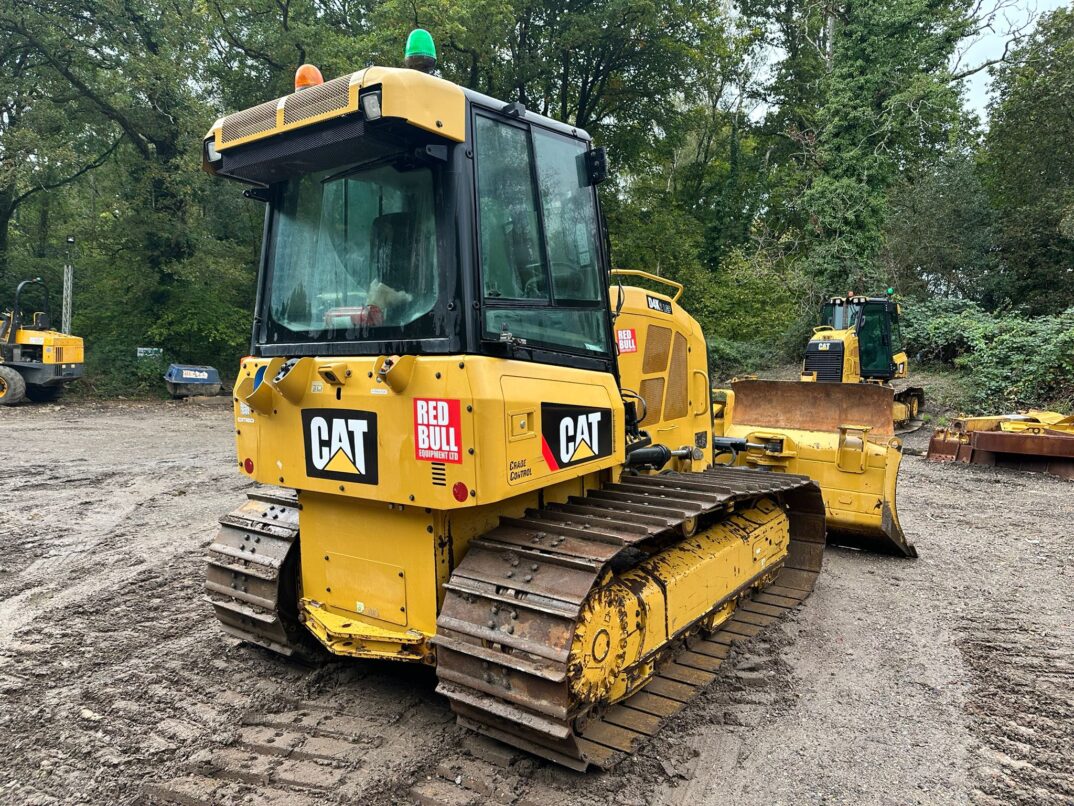

2019 CAT D4K2 LGP for Sale in Southampton

CAT D4K2 LGP Weight: 8,510 KGS Hours: 2957 HP: 92
Rippers available at an additional cost.

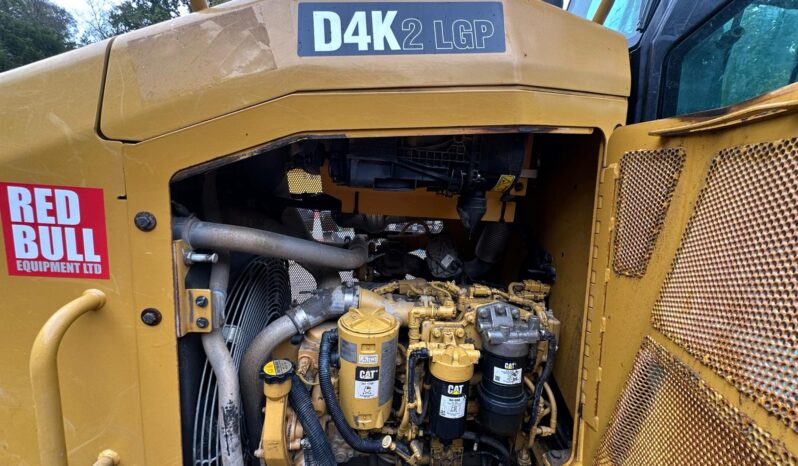

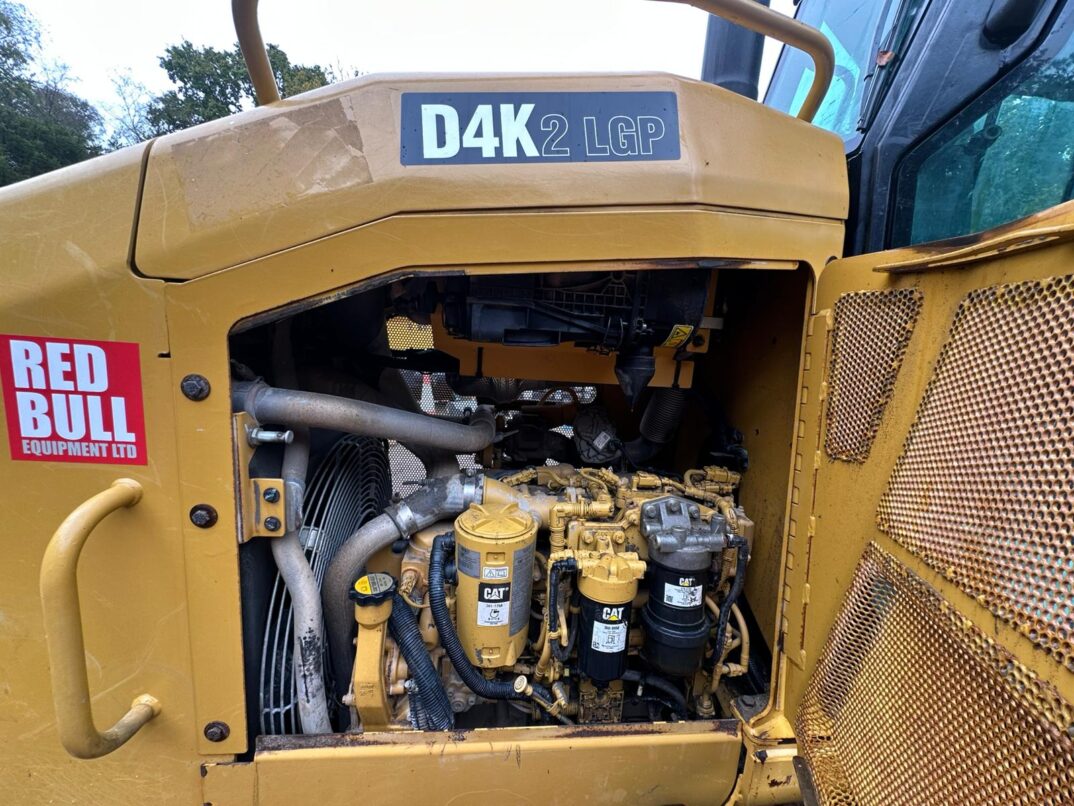

ENGINE
Blow by- Good- - - -
Knocking- No knocking- - - -
Air filters- Good- - - -
Any smoke- No- - - -
Oil or fuel leaks- No leaks- - - -
General running condition- Very good- - - - - - - TRANSMISSION
Gear change- Good- - - -
Steering- Good- - - -
Oil leaks- No leaks- - - -
Is the transmission noisy?- No- - - -
Torque converter- Good- - - -
Controls- Good controls- - - -
General running condition- Very good- - - - - - - UNDERCARRIAGE
Shoes - any wear on trailing edge?- Slight wear- - - -
Rail height- 50mm, 80%- - - -
Average diameter of pins and bushings- 54mm, 90%- - - -
Have pins been turned on chains?- No- - - -

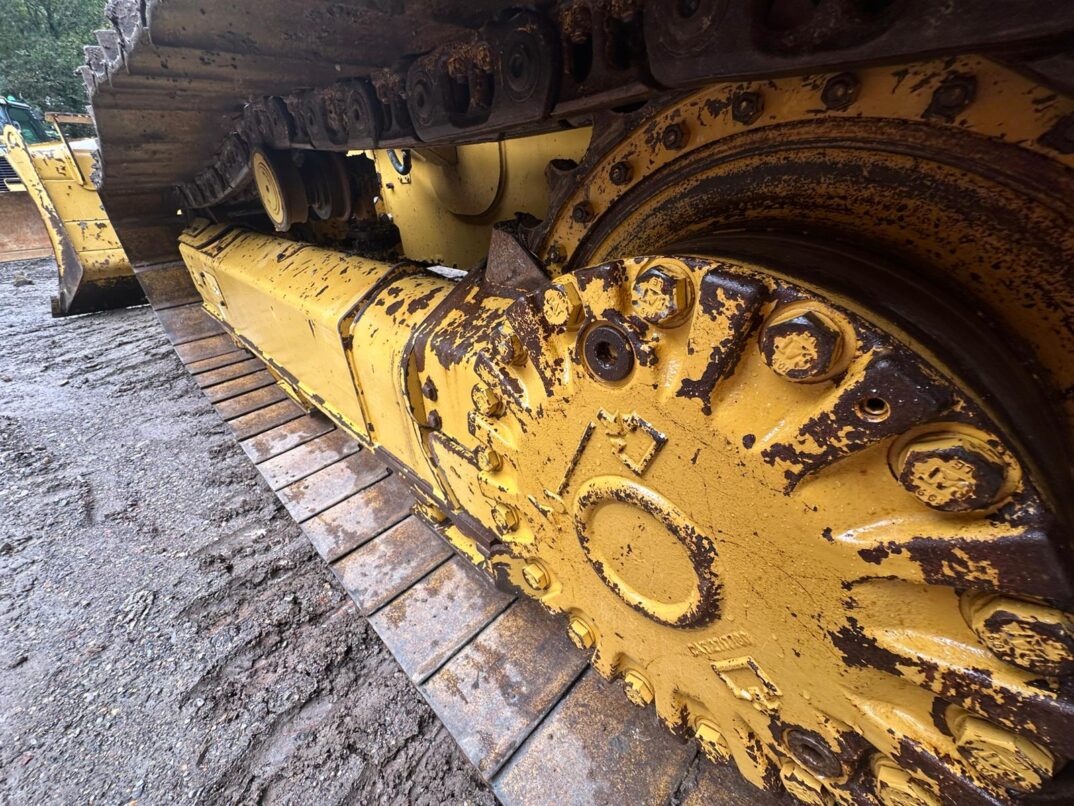

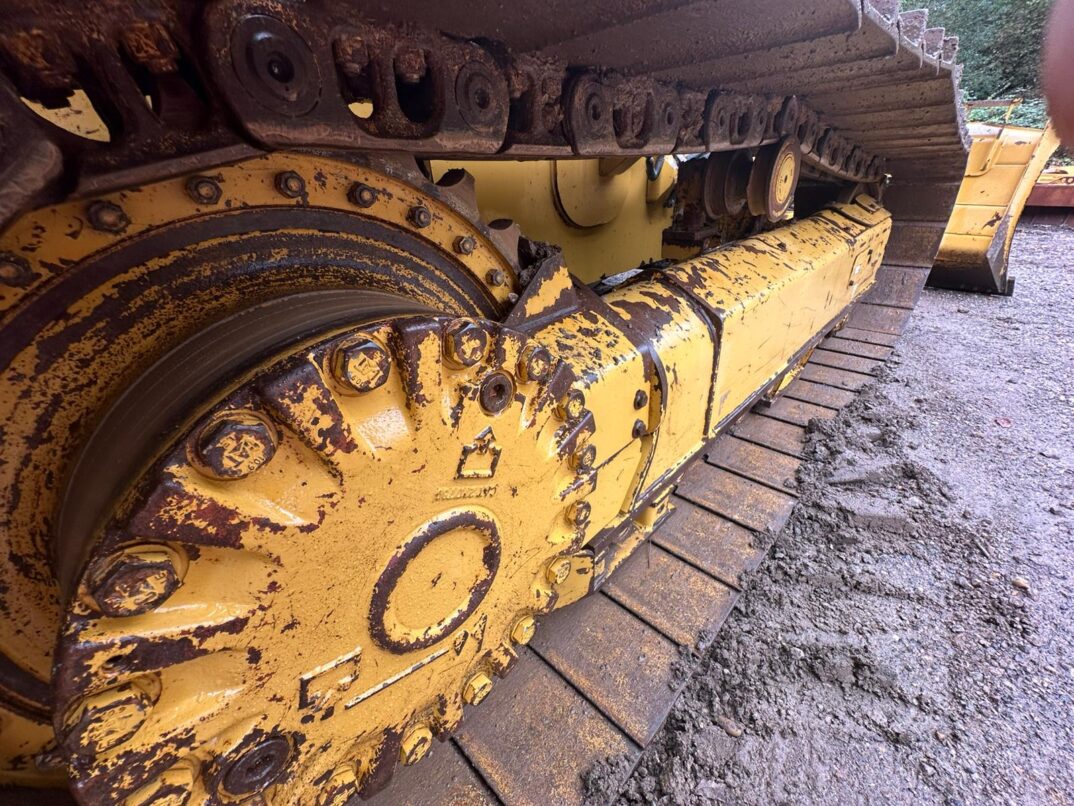

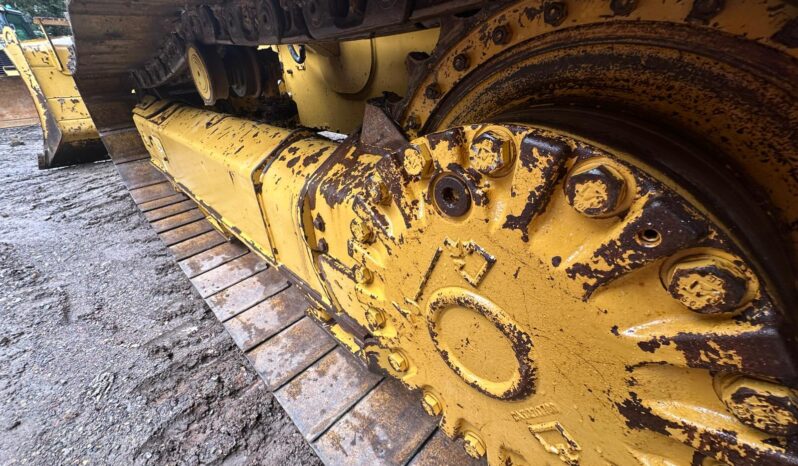

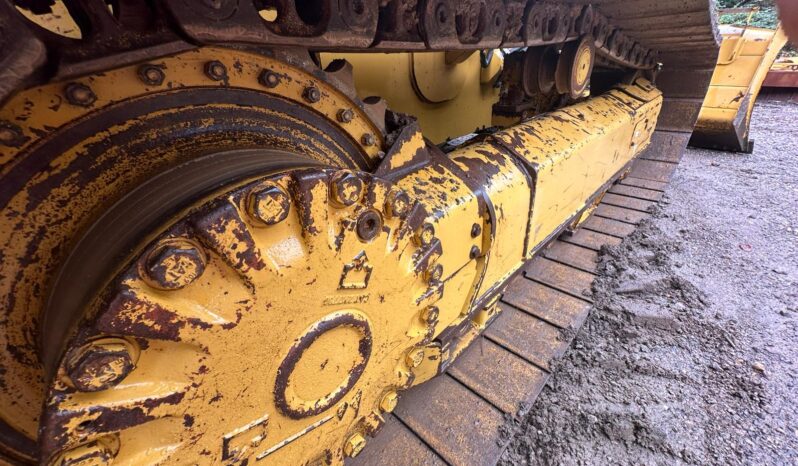

Sprockets- Really good, 90%- - - - - - - IDLERS - UNDERCARRIAGE
Left side front idler- 25mm, 75%- - - -
Right side front idler- 25mm, 75%- - - - - - - TOP ROLLERS
Left side roller- 152mm, 75%- - - -
Right side roller- 154mm, 75%- - - - - - - BOTTOM ROLLERS - UNDERCARRIAGE
Roller 1- 160mm x 160mm, 70%- - - -
Roller 2- 162mm x 160mm, 70%- - - -
Roller 3- 163mm x 166mm, 75%- - - -
Roller 4- 162mm x 168mm, 75%- - - -
Roller 5- 168mm x 168mm, 75%- - - -
Roller 6- 162mm x 163mm, 70%- - - -
Roller 7- 168mm x 166mm, 75%- - - - - - - CAB
Cab mounts - any wear?- Good- - - -
Any wiring for laser system- Yes- - - -

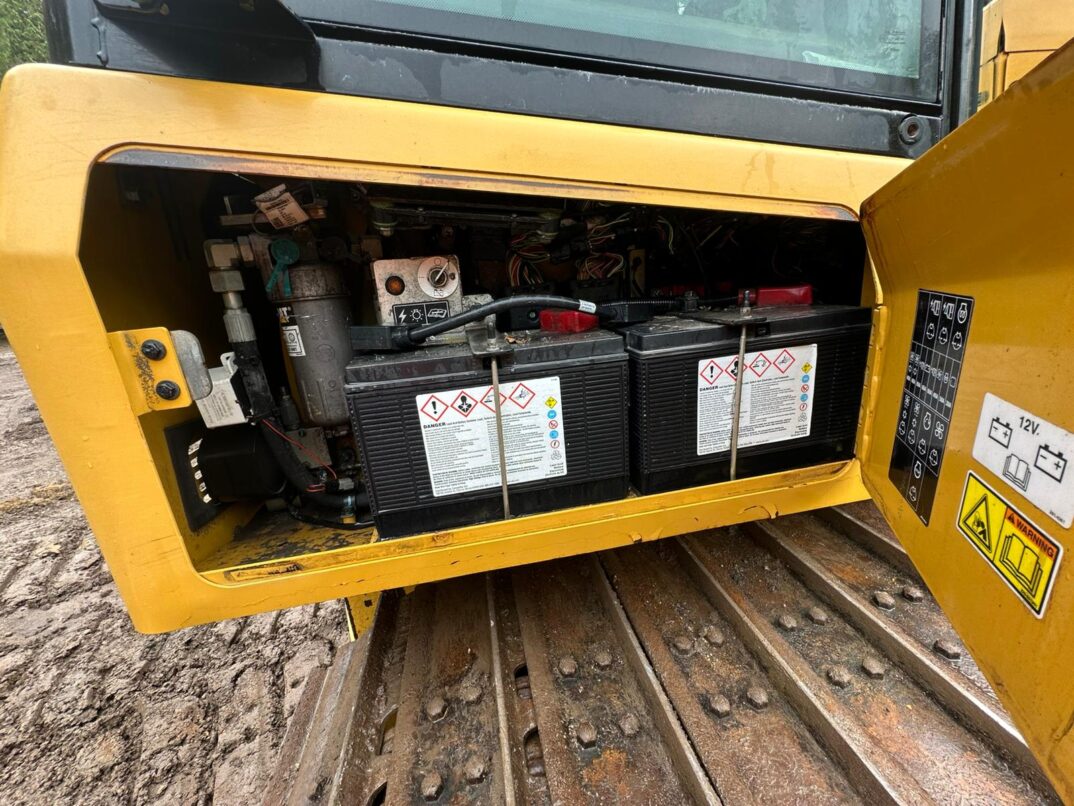

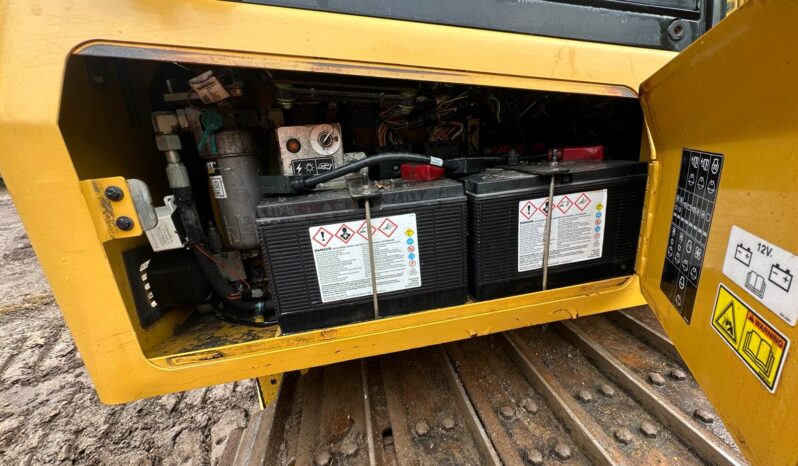

Battery isolator switch- Good- - - -
Lights- All working- - - -
Wipers- All working- - - -
Heater- All works- - - -
A/C- Working- - - -
Seat condition- Good- - - -
Cladding condition- Good- - - -
Floor mat condition- Clean- - - -
Seat belt- Works- - - -
Mirrors- Good, no cracks- - - -
Horn- Loud and clear- - - -
Any perspex fitted- none- - - -

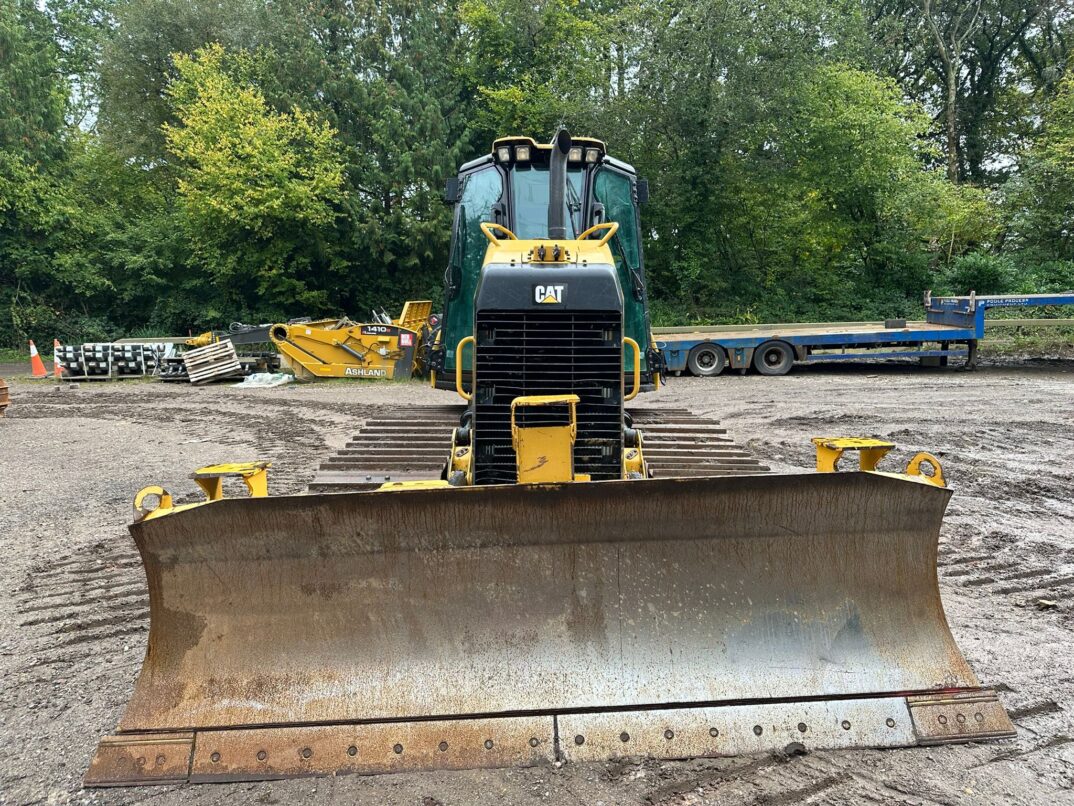

Steps and grab handles secure?- All safe- - - - - - - BLADE

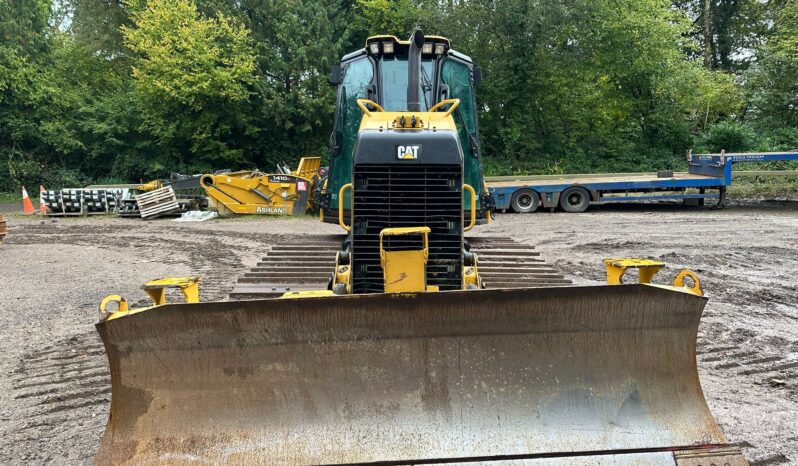

Blade type- PAT- - Blade width- 3150mm- - Blade height- 940mm- - Main lift rams, wear in pins- Slight wear, side movement- - - -
Swivel rams, wear in pins- Slight wear- - - -
Tilt ram, wear?- Slight wear- - - -
Ball joint wear- None- - - -
Tilt ram- Good- - - -
C Frame- Good- - - -
Centre pin- Good- - - -
Face / moldboard- Good- - - -
Cutting edges condition- Good, like new- - - -
Have cutting edges been turned?- No- - - -
General blade condition- Good- - - - - - - PAINT & DECALS
Paint condition- Good, some scratches- - - -
Any rust patches- Usual areas- - - -
Condtion of decals- New- - - - - - - DIMENSIONS- Length
Width
Height- Measurements with blade straight- 430mm
315mm
310mm-
Measurements with blade straight- Length: 430mm
Width: 315mm
Height: 310mm
