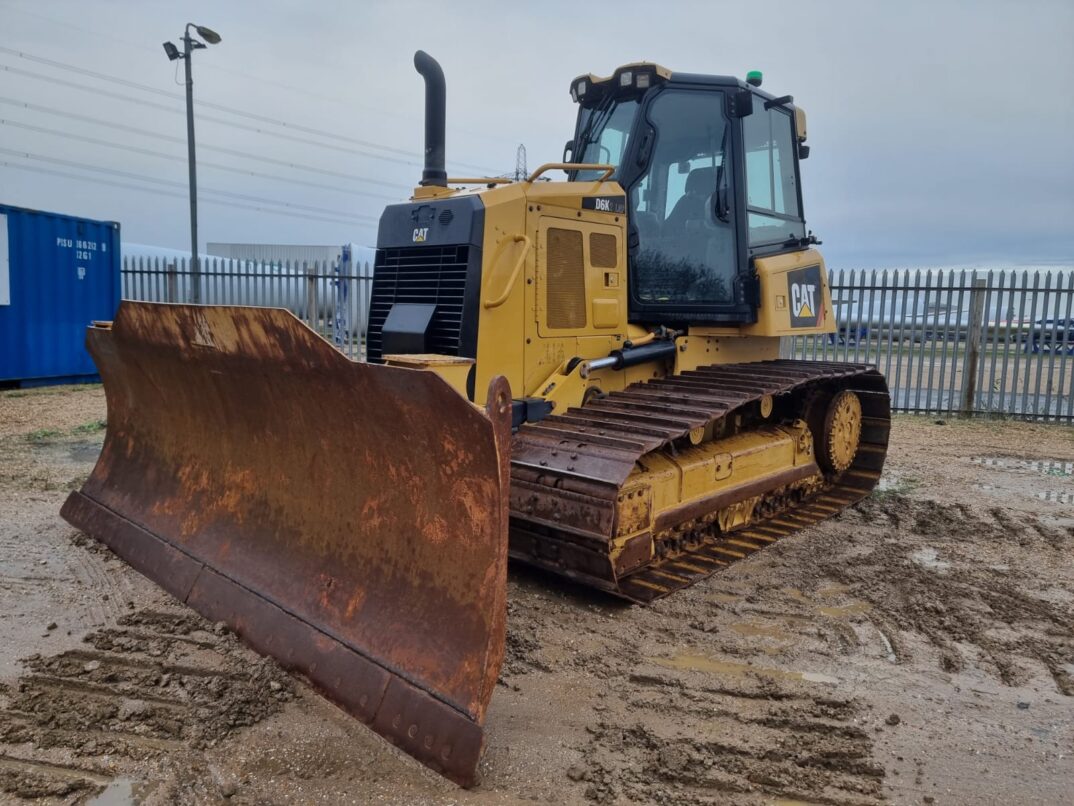

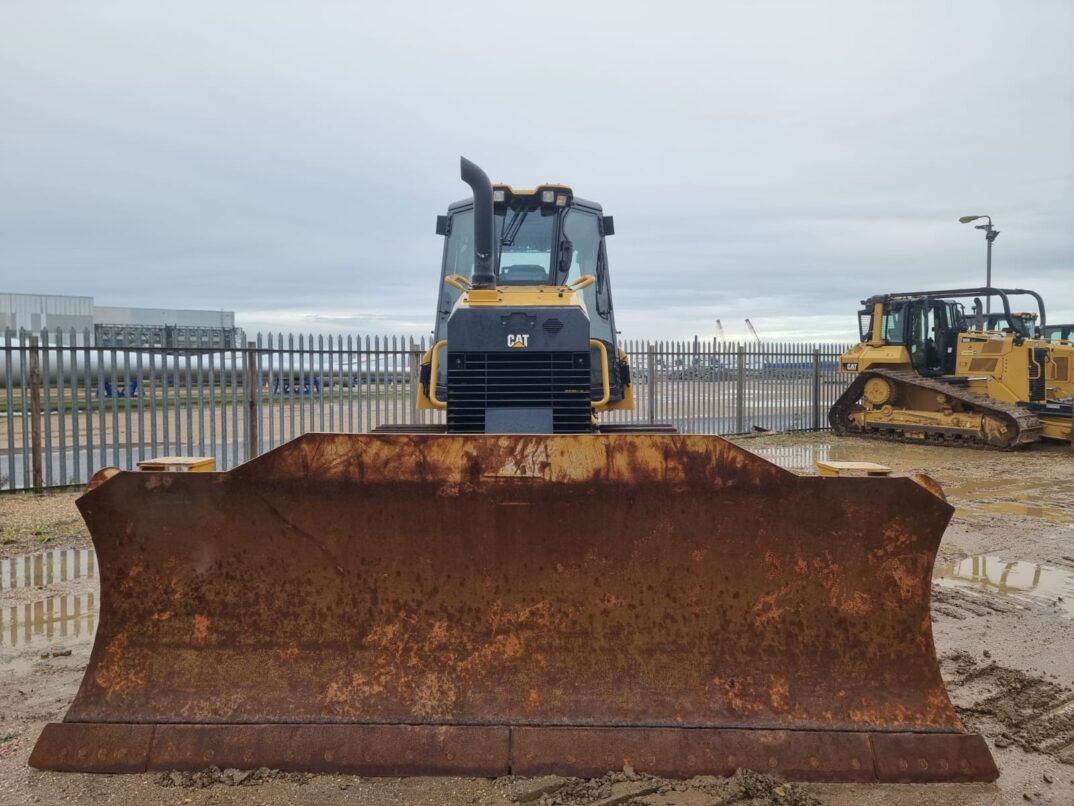

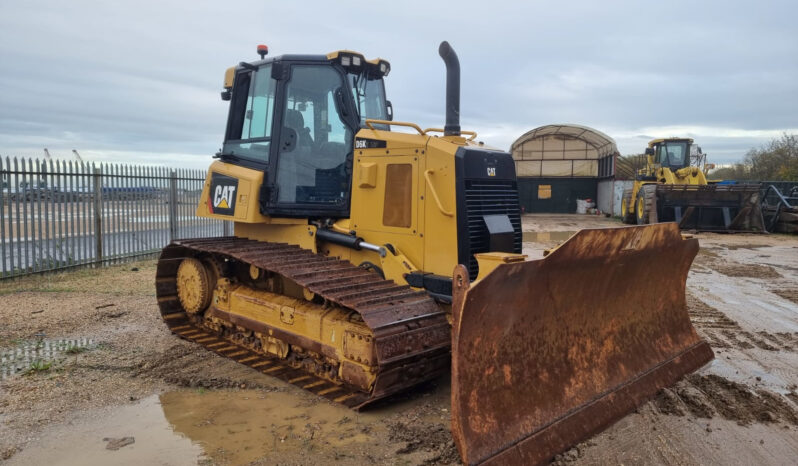

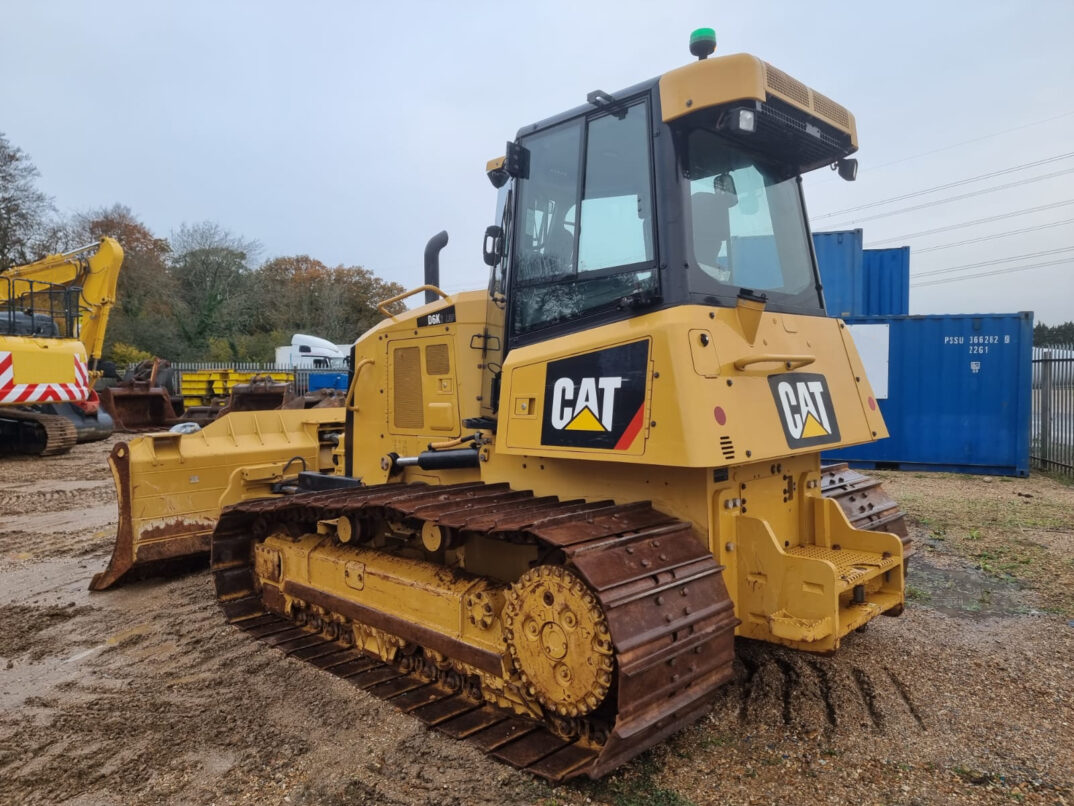

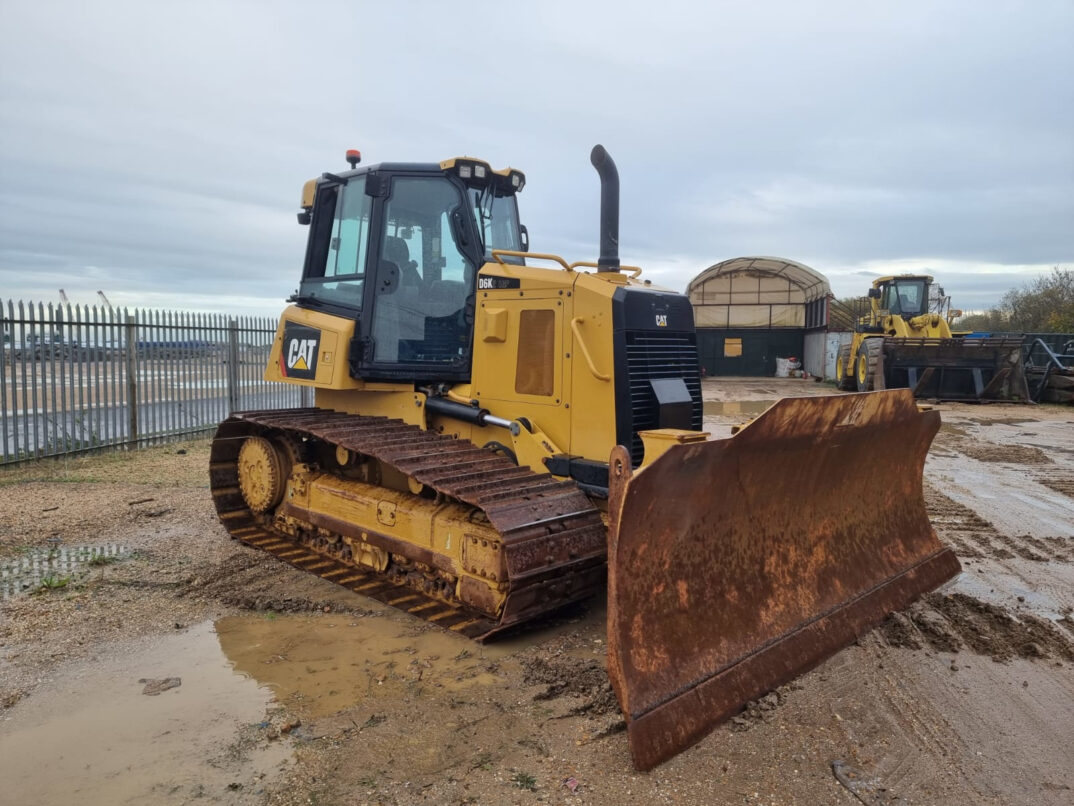

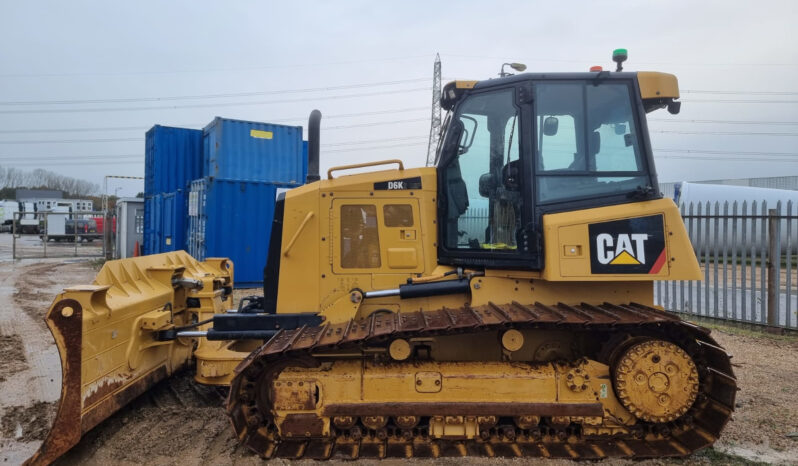

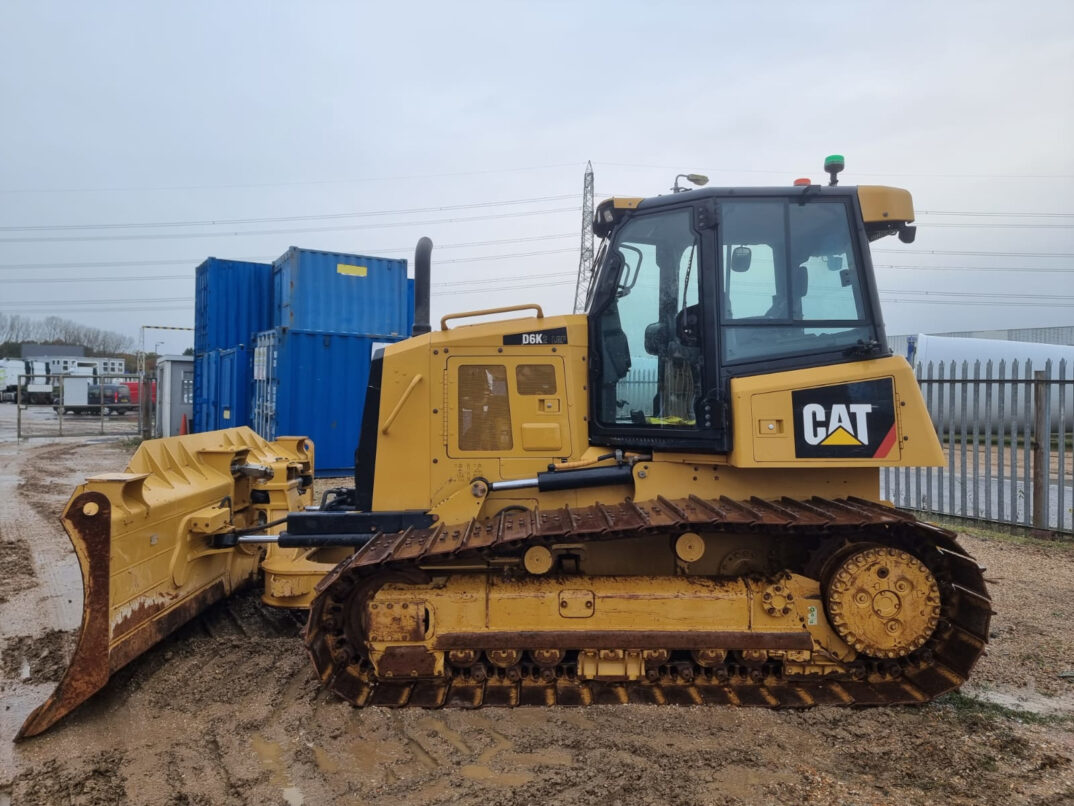

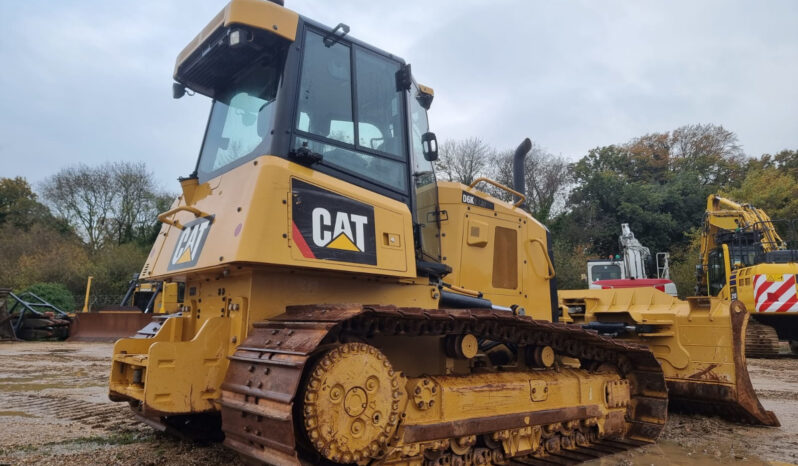

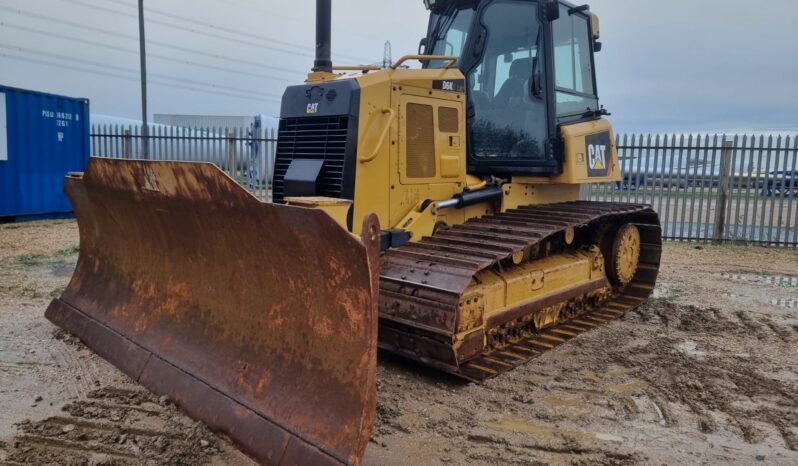

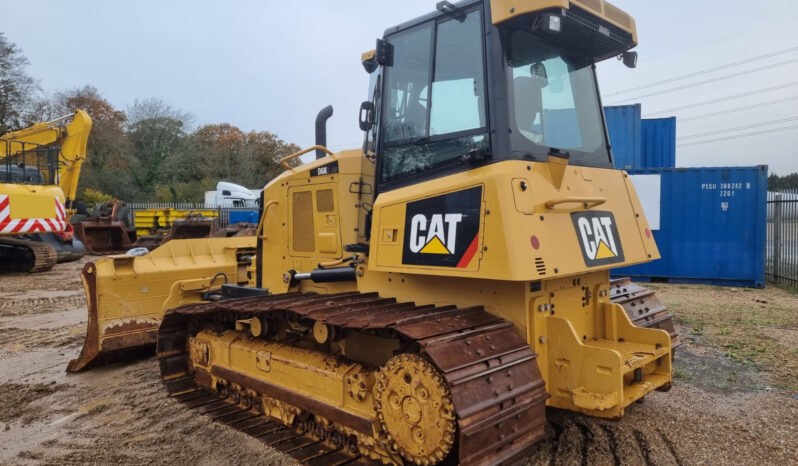

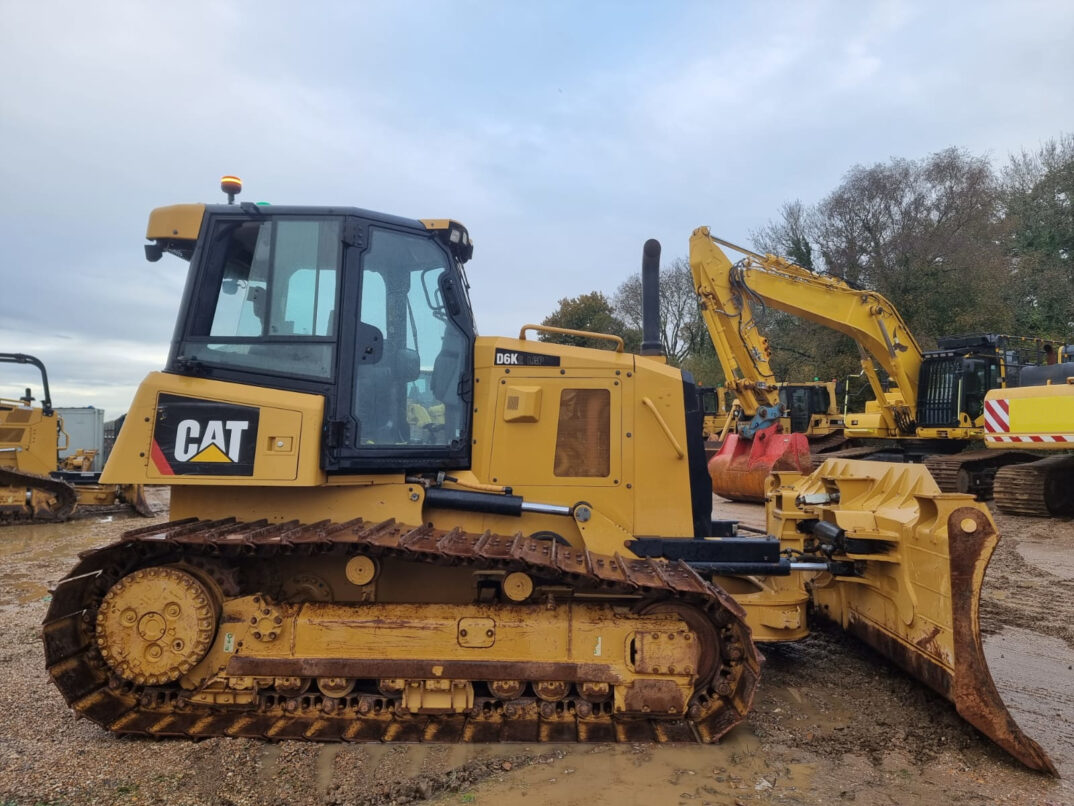

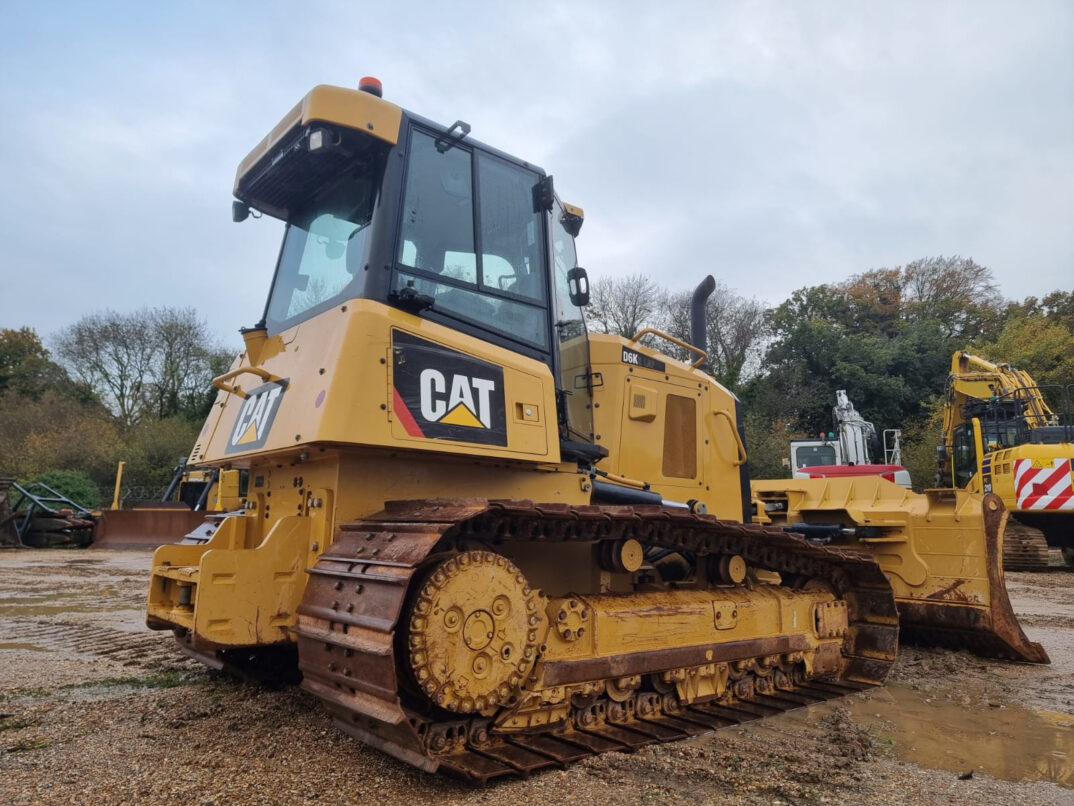

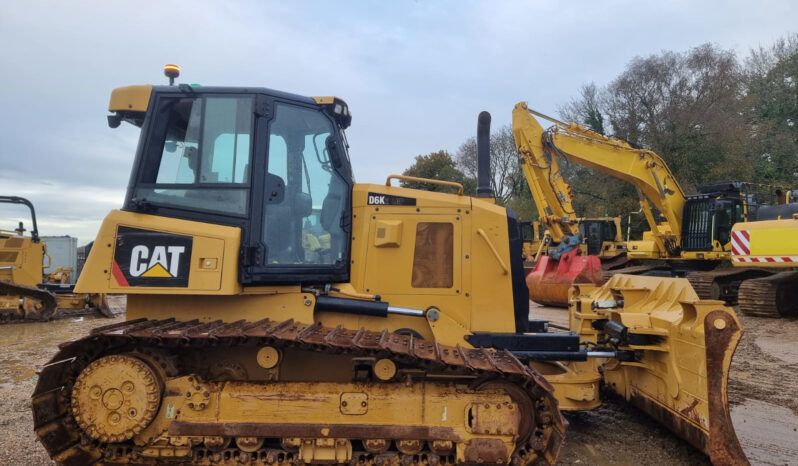

2019 CAT D6K2 LGP for Sale in Southampton

CAT D6K2 LGP Weight: 13,948 KGS Hours: 4254 HP: 158
Rippers available at an additional cost.
ENGINE
Blow by- Minimal- - - -
Knocking- No knocking- - - -
Air cleaners- Good- - - -
Any smoke- No smoke- - - -
Oil or fuel leaks- None visible- - - -
General running condition- Runs well, sounds good- - - - - - - TRANSMISSION
Gear change- HST works well- - - -
Steering- Responsive- - - -
Oil leaks- None visible- - - -
Is the transmission noisy- No- - - -
Controls- Responsive controls- - - -
General running condition- Moves well- - - - - - - UNDERCARRIAGE
Shoe width- 760mm- - - -
Shoe height- 40mm, 65%- - - -
Shoes - any wear in trailing edge- Yes- - - -
Rail height- 111mm , 20%- - - -
Any signs of link failure- No- - - -
Average diameter of pins and bushings- 52mm, 20%- - - -
Sprockets- 83mm gape, 12mm tips. 40%- - - - - - - UNDERCARRIAGE - IDLERS
Left side idler- 75mm x 30mm x 40mm x 20mm, 50%- - - -
Right side ilder- 75mm x 30mm x 40mm x 20mm, 50%- - - - - - - UNDERCARRIAGE - TOP ROLLERS
Left side 1st roller- 153mm x 152mm, 50%- - - -
Left side 2nd roller- 150mm x 152mm, 50%- - - -
Right side 1st roller- 150mm x 152mm, 50%- - - -
Right side 2nd roller- 153mm x 155mm, 50%- - - - - - - UNDERCARRIAGE - BOTTOM ROLLERS
Roller 1- Visual only, 20%- - - -
Roller 2- 164mm & 163mm, 20%- - - -
Roller 3- 161mm & 161mm, 20%- - - -
Roller 4- Visual only, 20%- - - -
Roller 5- 158mm & 160mm, 20%- - - -
Roller 6- 158mmm & 158mm, 20%- - - -
Roller 7- 159mm & 158mm, 20%- - - -
Roller 8- Visual only, 20%- - - - - - - CAB
Cab mounts - any wear- Minimal wear- - - -
Back up alarm- Loud and clear- - - -
Battery isolator switch- Manual fitted- - - -
Lights- All working- - - -
Wipers- All working- - - -
Heater- Good heat- - - -
A/C- Nice and cold- - - -
Seat condition- Good condition- - - -
Cladding condition- Good condition- - - -
Floor mat condition- No ware or tears- - - -
Seat belt- Working as should- - - -
Mirrors- Fitted, undamaged- - - -
Horn- loud and clear- - - -
Cab mounts- Good mounts- - - -
Cab glass condition- Really good condition- - - -
Any cracks in cab glass- no cracks- - - -
Any perspex fitted- None fitted- - - -
Steps and grab handles secure?- All secure, undamaged- - - - - - - BLADE
Blade width- 3640mm- - Blade height- 1280mm- - Lift ram wear- L/H: 1-2mm x 1-2mm. R/H: 1mm x 1mm- - Pitch ram wear- L/H: 1-2mm x 0mm. R/H: 1mm x 0mm- - Tilt ram wear- 2mm x 1-2mm- - link arm wear- 2mm x 2mm- - Ball joint wear- 5-6mm- - C-Frame wear- L/H: 3-4mm, R/H: 4mm- - Equaliser bar wear- 2mm x 3mm x 2mm- - Face / Moldboard- Good thickness, no damage- - - -
Spill rack condition- Straight, no damage- - - -
Cutting edges condition- 25mm left- - - -
Have cutting edges been turned- No- - - -

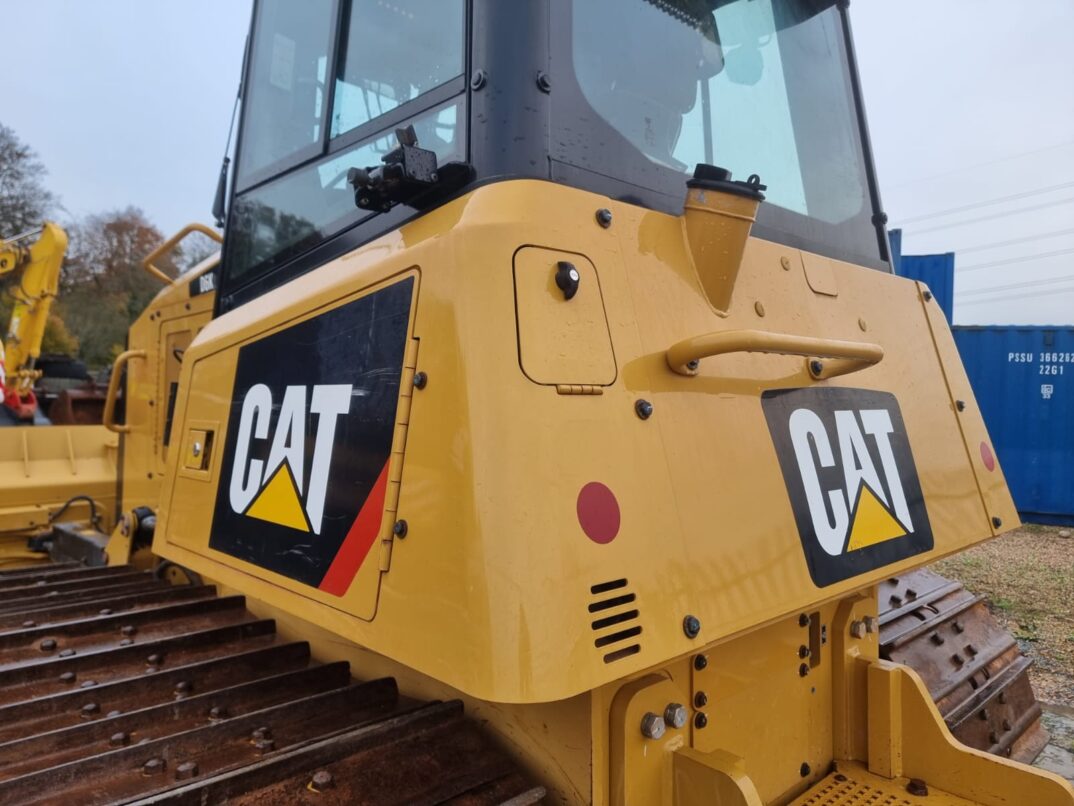

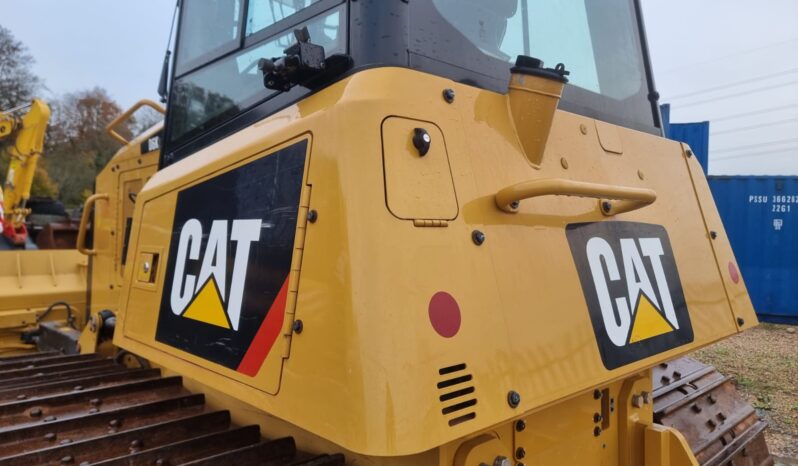

General blade condition- Good blade all round- - - - - - - PAINT & DECALS
Any damage to panels- No panel damage- - - -
Paint condition- Really good, minor scuffs- - - -
Any areas repainted- No- - - -
Any rust patches- Usual areas- - - -
Condition of decals- To be replaced- - - -
DIMENSIONS- Length
Width
Height- Measurements with blade straight- 4900mm
3640mm
2960mm- Measurements with blade turned- 5700mm
3300mm
2960mm- Measurement from outside to outside of tracks-
2760mm- - Measurements with blade straight- Length: 4900mm
Width: 3640mm
Height: 2960mm- Measurements with blade turned- Length: 5700mm
Width: 3300mm
Height: 2960mm- Measurement from outside to outside of tracks- Length:
Width: 2760mm
Height:
