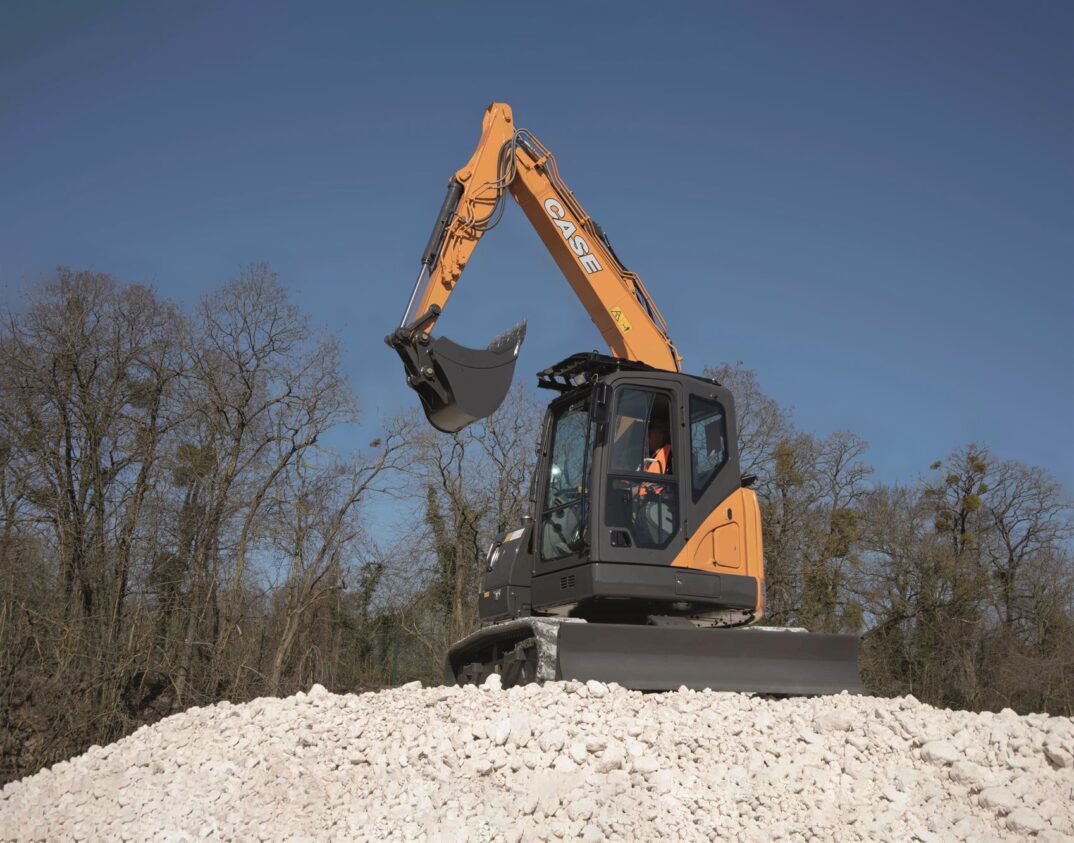

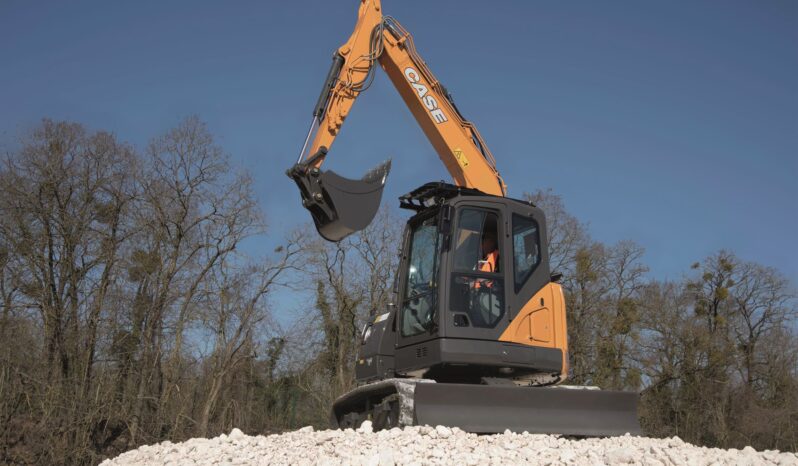

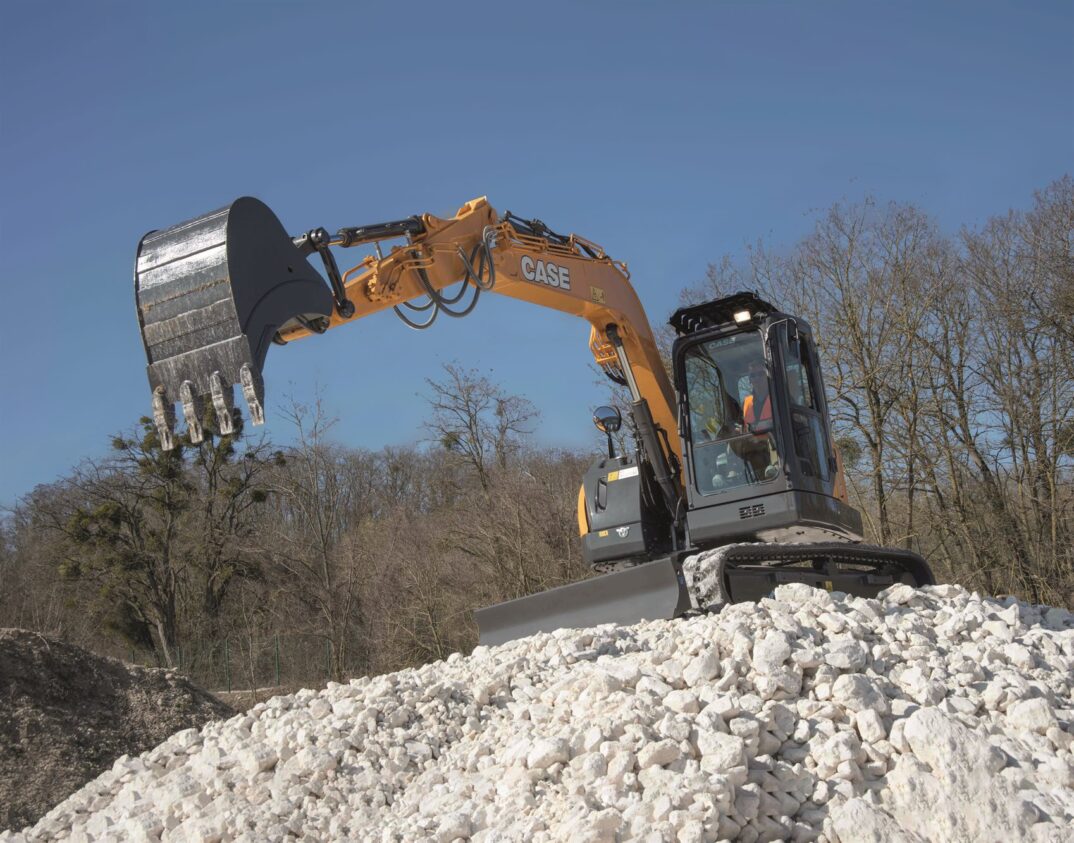

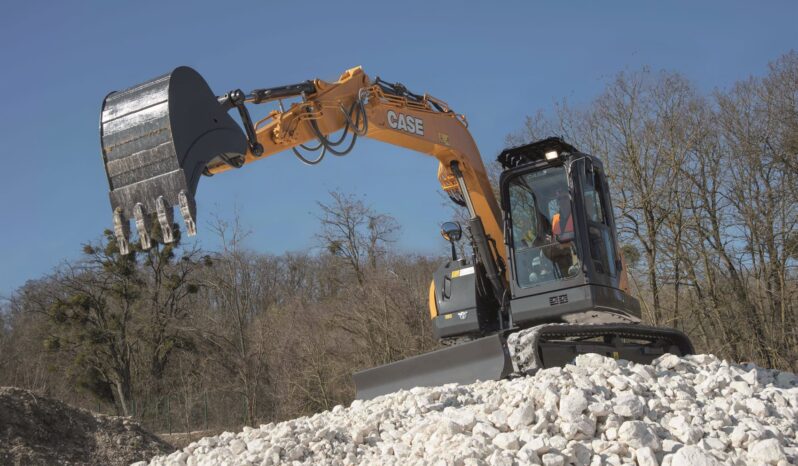

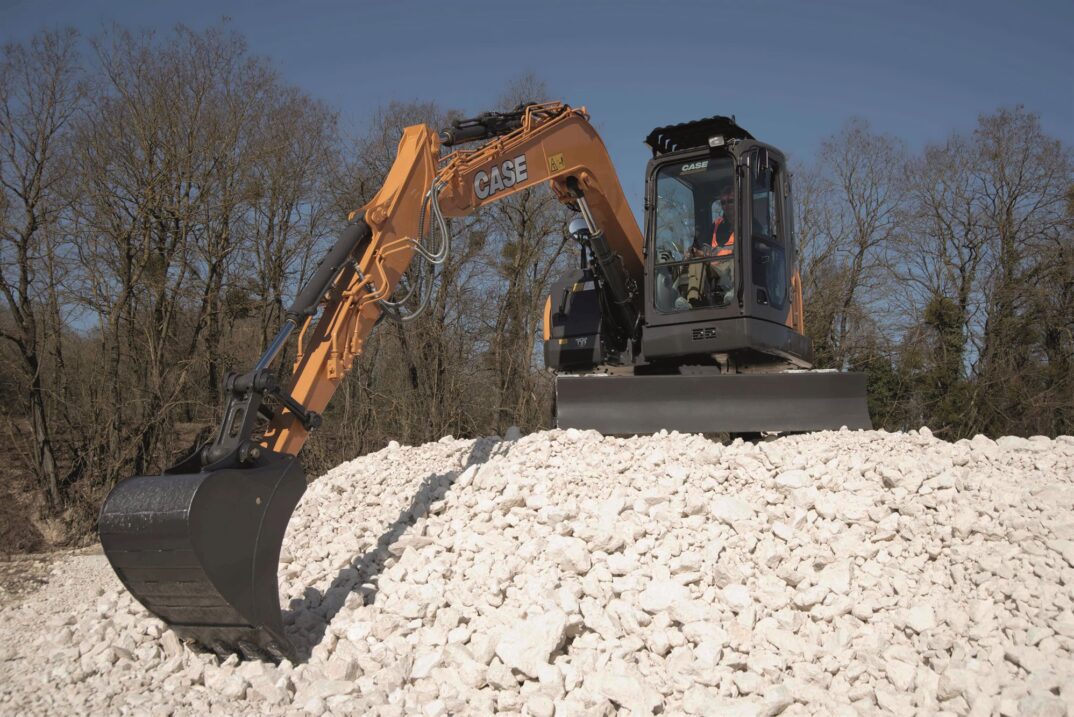

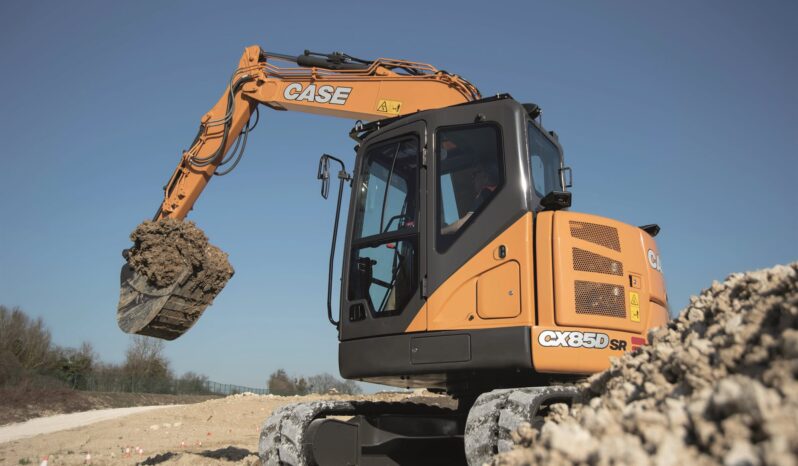

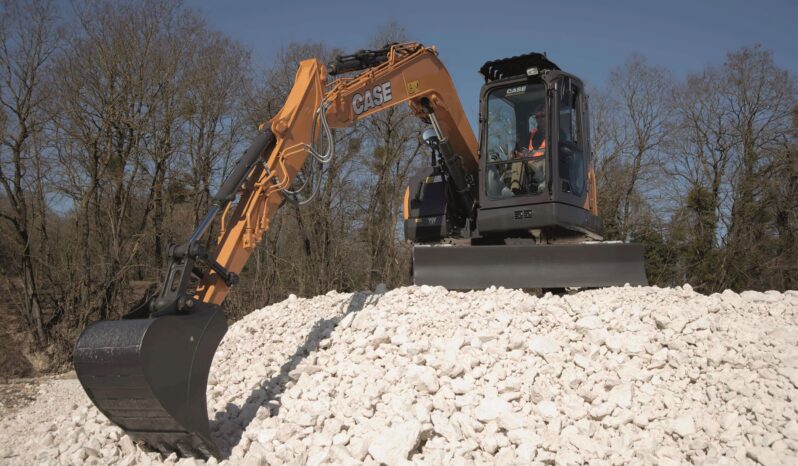

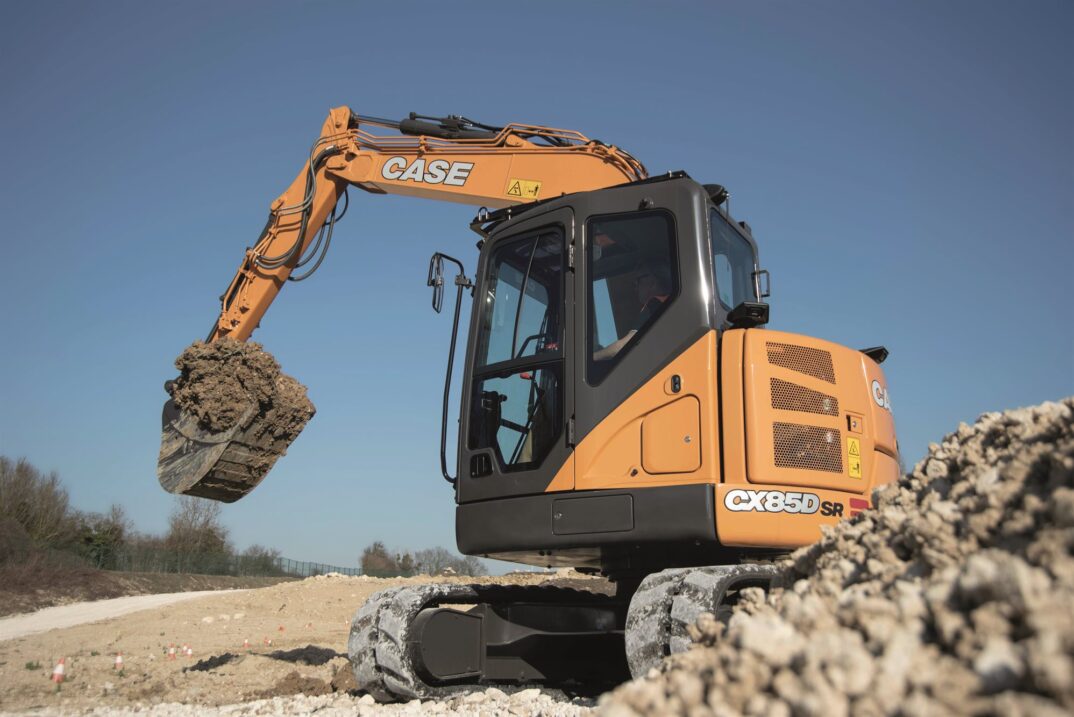

Case CX85D Midi Excavator

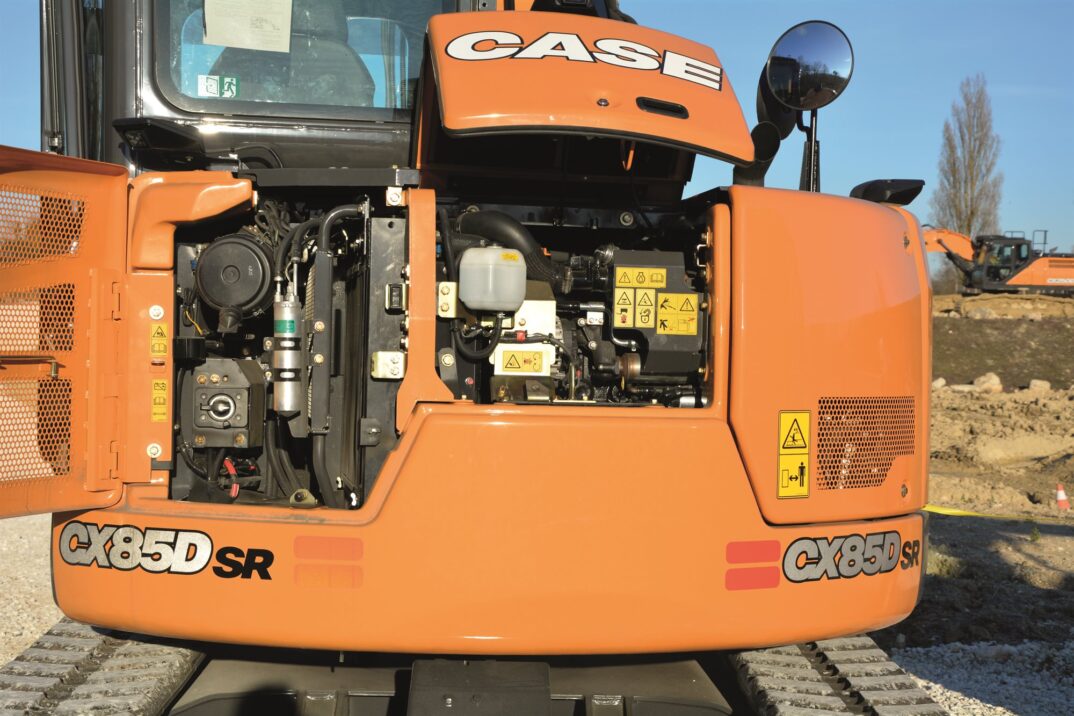

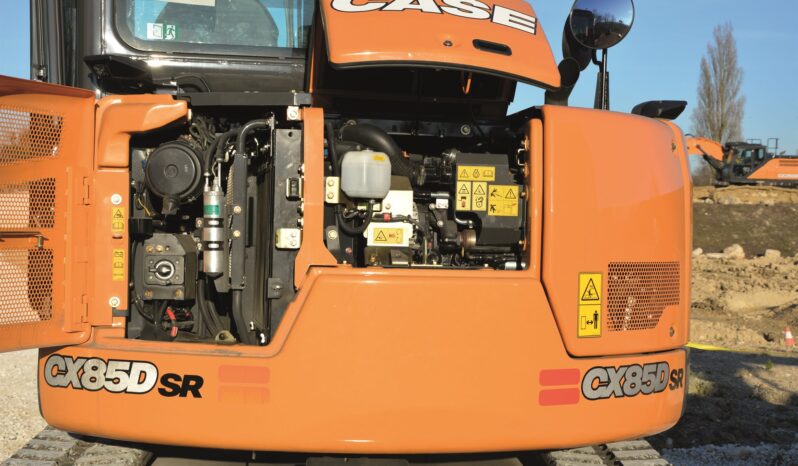

The all new CX85D Midi Excavator from CASE Construction!The Case CX85D Midi Excavator benefits from it’s new Stage V Yanmar engine, that offers a huge 20% more power and a 54% increase in torque from the older C Series! To bring the Case Midi Excavators in line with the D series Crawler Excavators, the main monitor has been changed to match. This new design features a 5% wider screen, offering a huge range of data, and now compatible with the CASE ‘Full View’ 270 degree camera system. The new Case CX85D has had some improvements to the fuel line system. The new fuel pre-filter has a water level sensor, which now triggers a dedicated error message on the screen when the water level is too high. An additional safety filer is also used to protect the engine from dust, there is no need to flush this filter after filter replacement as it is maintenance free. As with the C series, the Case CX85D uses the Case ‘Easy Maintenance System’ (EMS) which uses stratified bushings and plated pins on the pivot points, these hold grease longer and increase lubrication intervals. This means all pivot points apart for the bucket are at 1000 hour grease intervals!
Engine: Yanmar 4TNV98CT-L2WSH Engine Power: 50.7kW Engine Torque: 283Nm Oil Flow: 2x 74l/min Weight: 7930kg  See more specificationsMax Reach6890mmMax Dig Depth4630mmTrack Width450mm
